Dual Axis Gyro - LPY5150AL - 1500°/s
This is a low-power dual axis (pitch and yaw) gyro with a 1500°/s maximum range.
Options include integrated low pass filters and embedded power down and self-test features.
Both x and z outputs are analog, and a 4x amplified output signal is also available for both axes.

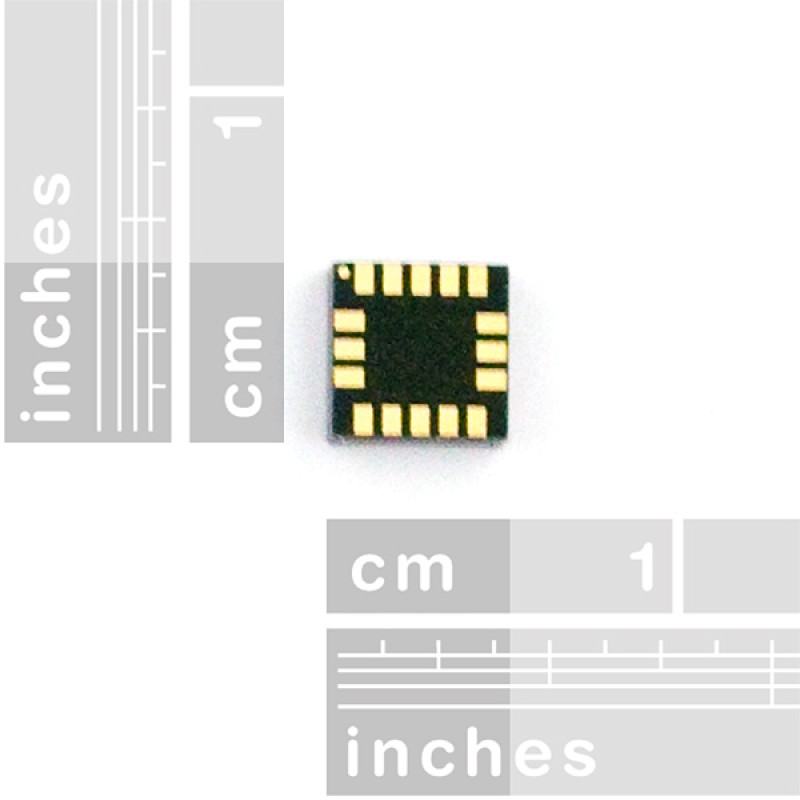

Comes in an LGA-16 package.
מאפיינים:
- 2.7 to 3.6VDC supply
- Dual axis pitch and yaw sensing
- 1500°/s output
- Low power consumption
- Wide operating temperature range (-40°C to +85°C)
- High stability overtemperature
- Embedded power-down feature
- Analog angular-rate outputs
- 4x amplified analog outputs
- Integrated low pass filters
- Embedded self test
- High shock survivability
