TC74 I2C Temperature Sensor
The TC74 is a serially accessible, digital temperature
sensor particularly suited for low cost and small formfactor
applications. Temperature data is converted from
the onboard thermal sensing element and made
available as an 8-bit digital word.
Communication with the TC74 is accomplished via a 2-
wire SMBus/I2C compatible serial port. This bus also
can be used to implement multi-drop/multi-zone
monitoring. The SHDN bit in the CONFIG register can
be used to activate the low power Standby mode.
Temperature resolution is 1°C. Conversion rate is a
nominal 8 samples/sec. During normal operation, the
quiescent current is 200 μA (typ). During standby
operation, the quiescent current is 5 μA (typ).
Small size, low installed cost and ease of use make the
TC74 an ideal choice for implementing thermal
management in a variety of systems.
Features

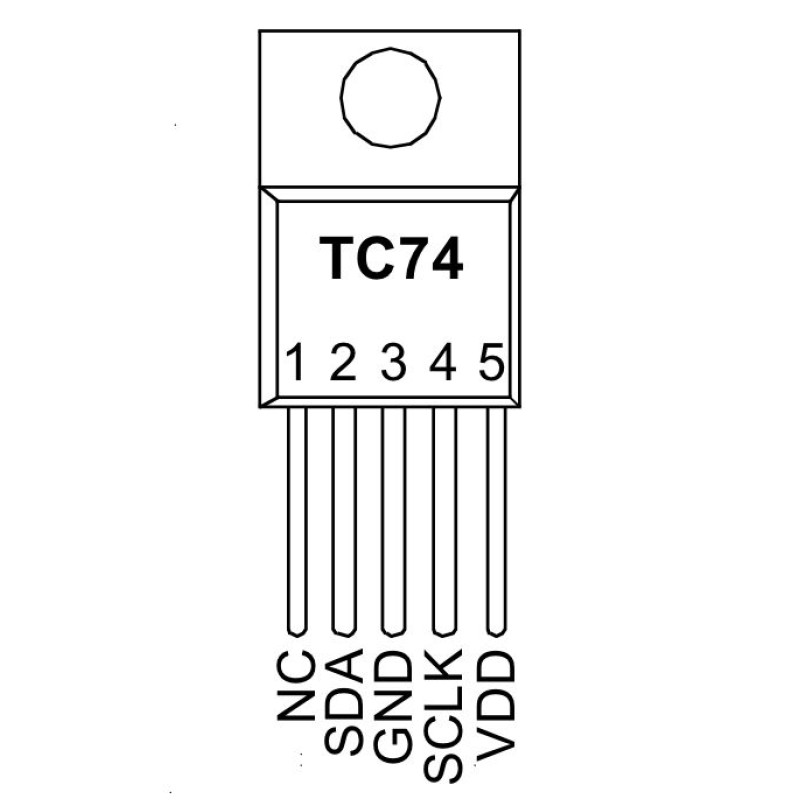

• Digital Temperature Sensing in SOT-23-5 or
TO-220 Packages
• Outputs Temperature as an 8-Bit Digital Word
• Simple SMBus/I2C™ Serial Port Interface
• Solid-State Temperature Sensing:
- ±2°C (max.) Accuracy from +25°C to +85°C
- ±3°C (max.) Accuracy from 0°C to +125°C
• Supply Voltage of 2.7V to 5.5V
• Low Power:
- 200 μA (typ.) Operating Current
- 5 μA (typ.) Standby Mode Current
