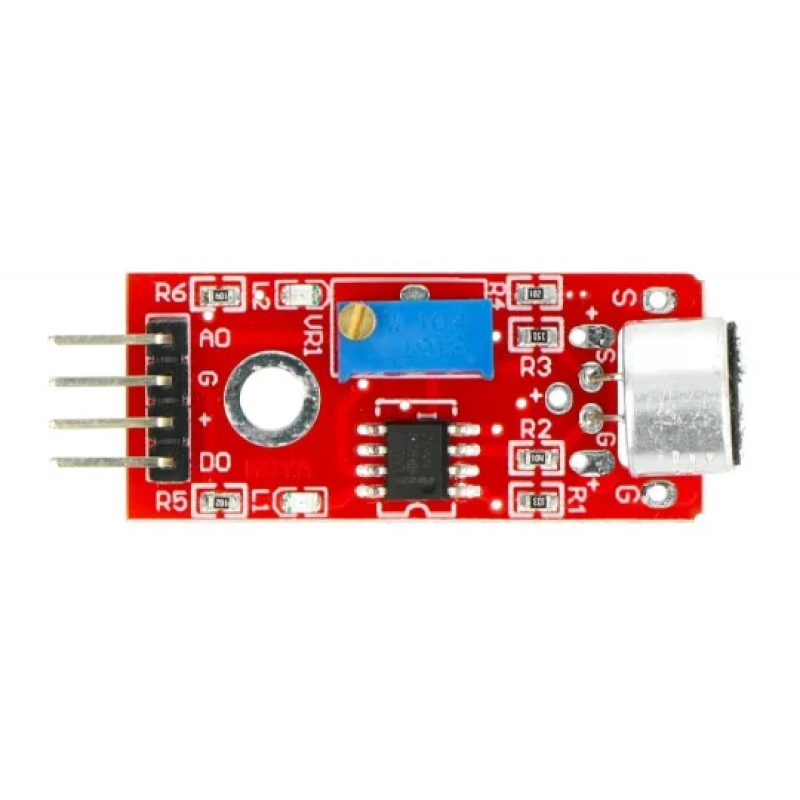

MICROPHONE SOUND DETECTION SENSOR MODULE
The sound detector with a small microphone, a voltage supply range from 3.3 V to 5 V. The module is easy to use, has two outputs: an analog - to measure the intensity of the digital signal and changing state when exceeding a certain level.
Thesensor has a 4-pin connector with analog and digital output A0 D0 to be attached to the pin of the microcontroller, e.g.an Arduino.
Specification of sound sensor Iduino
-
Supply voltage: from 3.3 V to 5 V
- Output: analog signal and digital
- Connector: 4-pin
- Microphone: electret
- Mounting hole: 3 mm
- Frequency range: 50 Hz to 20 kHz
- Resistance: 2.2 kOhm
- Sensitivity; from 48 dB to 66 dB
- Operating temperature: -40 °C to 85 °C
- Module dimensions: 44 x 15 x 10 mm
- Weight: 4 g
