LiPo Charger Basic - Mini-USB
If you need to charge LiPo batteries, this simple charger will do just that.
It is designed to charge single-cell Li-Ion or Li-Polymer batteries.
Check the datasheet below to see if it will work with your battery.

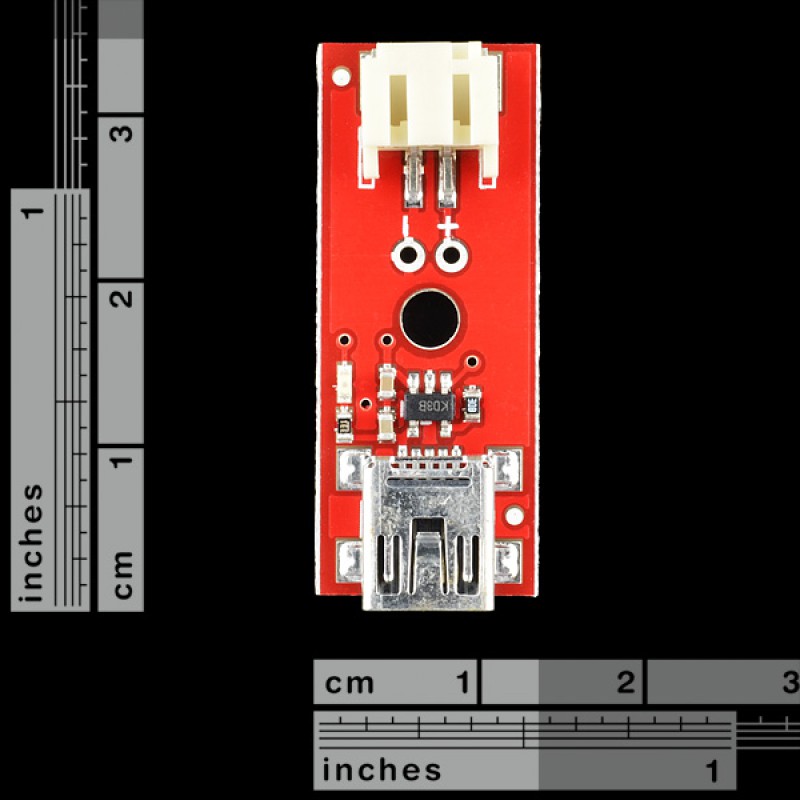

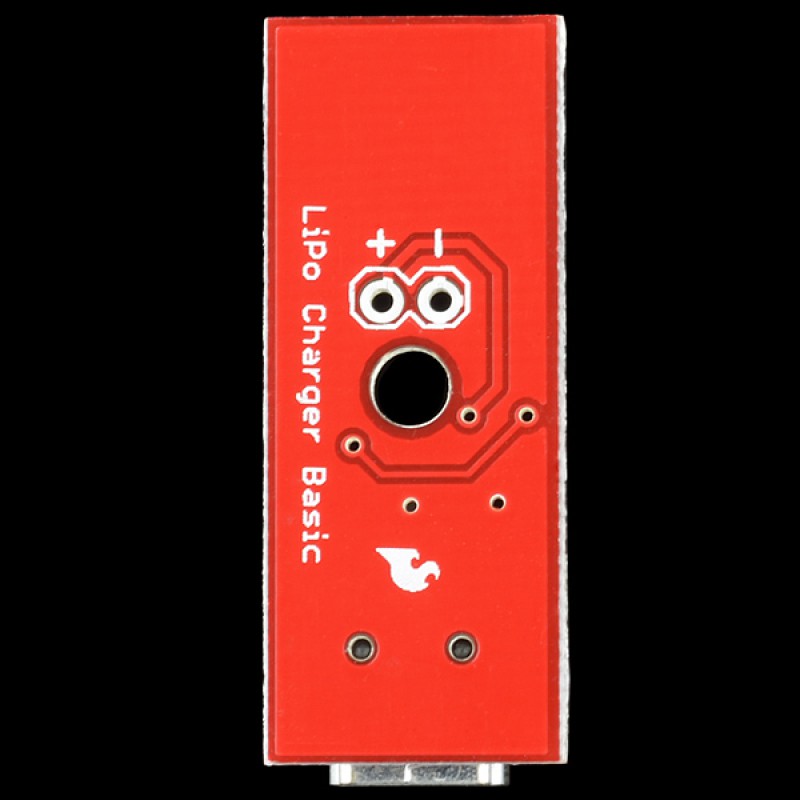

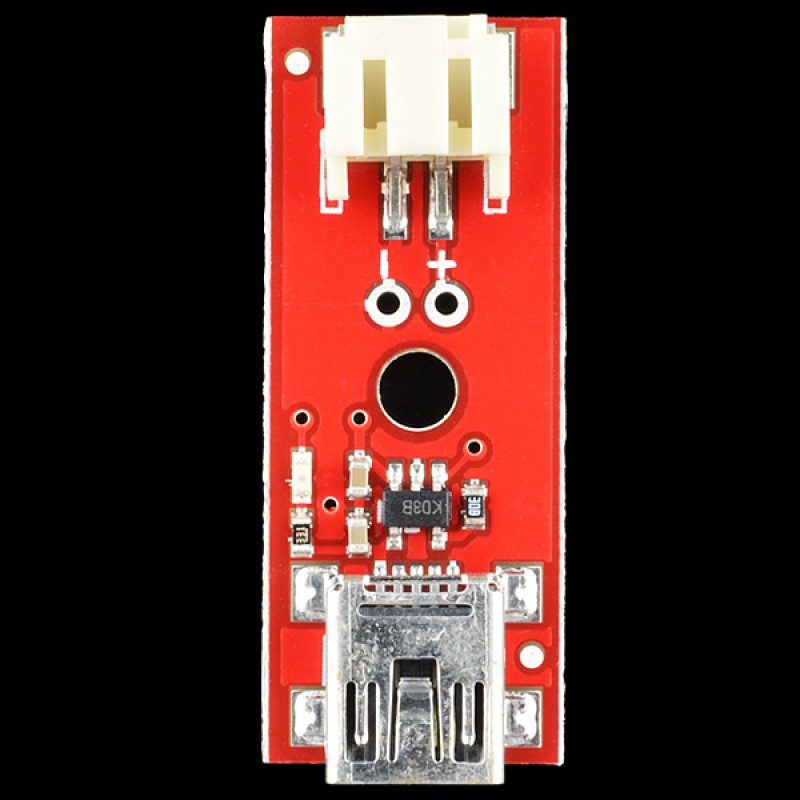

The board incorporates a charging circuit, status LED, connector for your battery
(JST-type used in the batteries we carry), and a mini-USB connector.
Note: This version uses a mini-USB cable.
We also have this charger with a micro-USB connection as well.
מידות:
29.4x10.8mm
תיעוד:
- Schematic
- Eagle Files
- Datasheet (MCP73831T)
