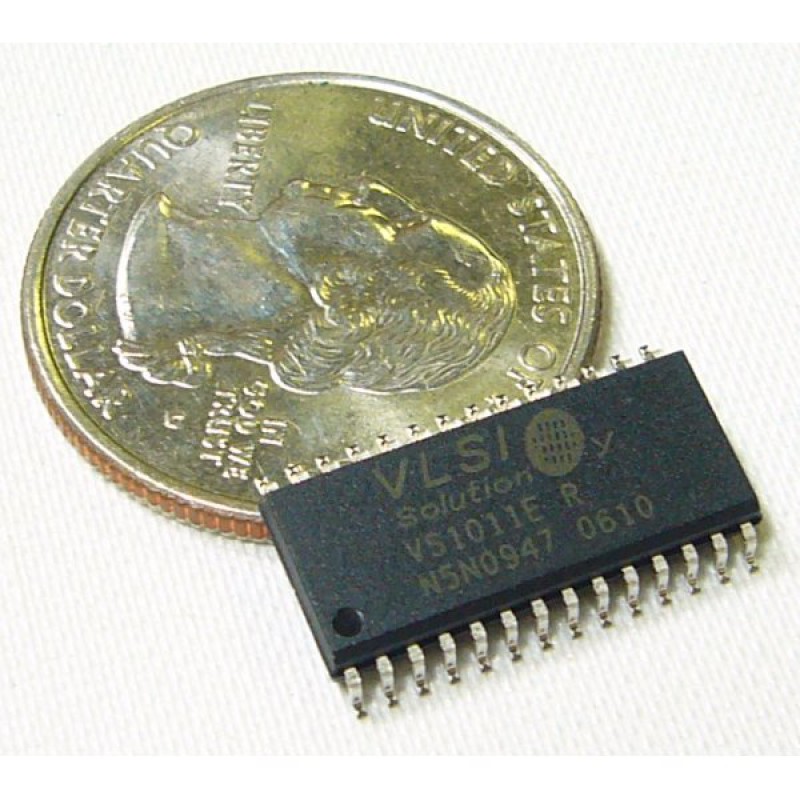

Description: MP3 decoding is now even easier! This is the popular VS1011 single-chip MP3 audio decoder from VLSI is an easy to solder SOIC package! It contains a high-performance, low-power DSP processor core VS DSP4, working data memory, 5.5kBytes of program or data RAM for for user applications, serial control and input data interfaces, and a high-quality oversampling variable-sample-rate stereo DAC.
VS1011 receives its input bitstream through a serial input bus. The input stream is decoded and passed to an 18-bit oversampling, multi-bit, sigma-delta DAC and earphone driver. The control commands of the device are transferred via the same serial bus as the data. In addition to basic MP3 decoding VS1011 can play PCM and WAV files. Optionally also MP1 and MP2 decoding can be enabled (check licensing issues). 5.5 kB RAM has been reserved for user application specific features, like DSP effects.
Available in a SOIC-28 pin package.
Features:
- Decodes MPEG1.0&2.0 audio layer III
