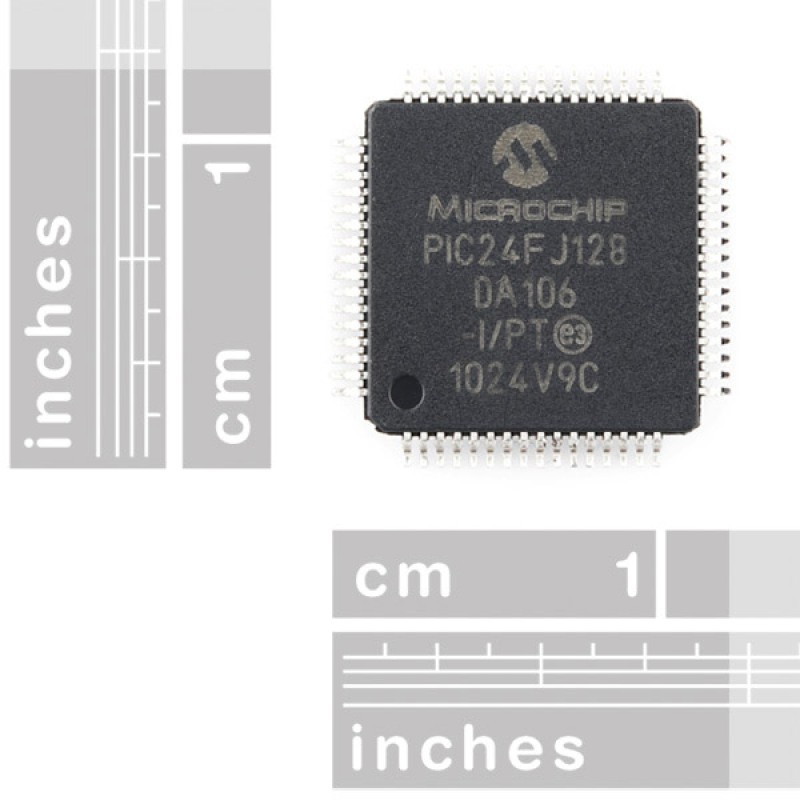

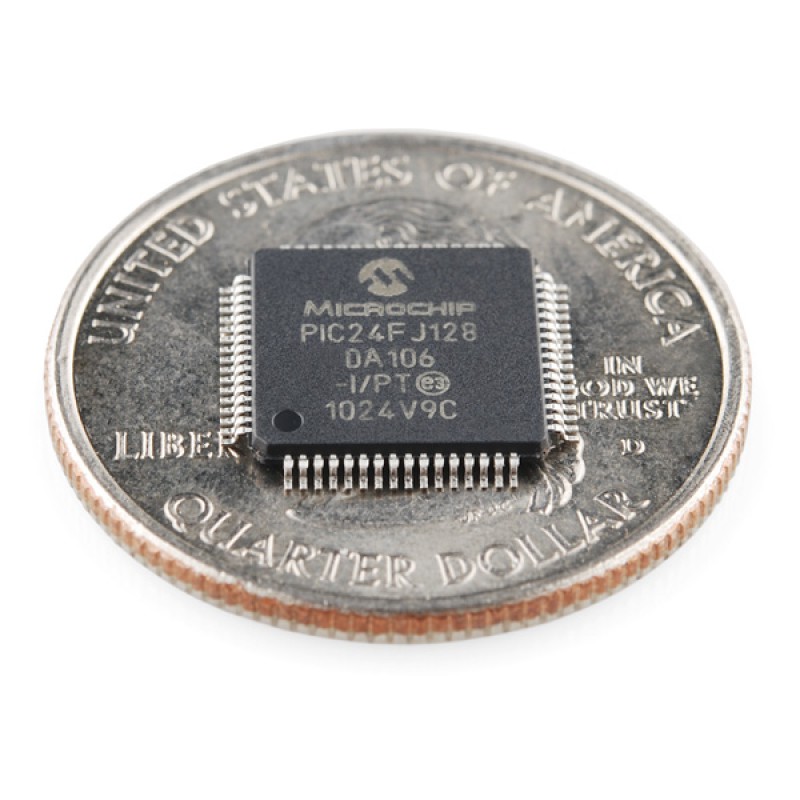

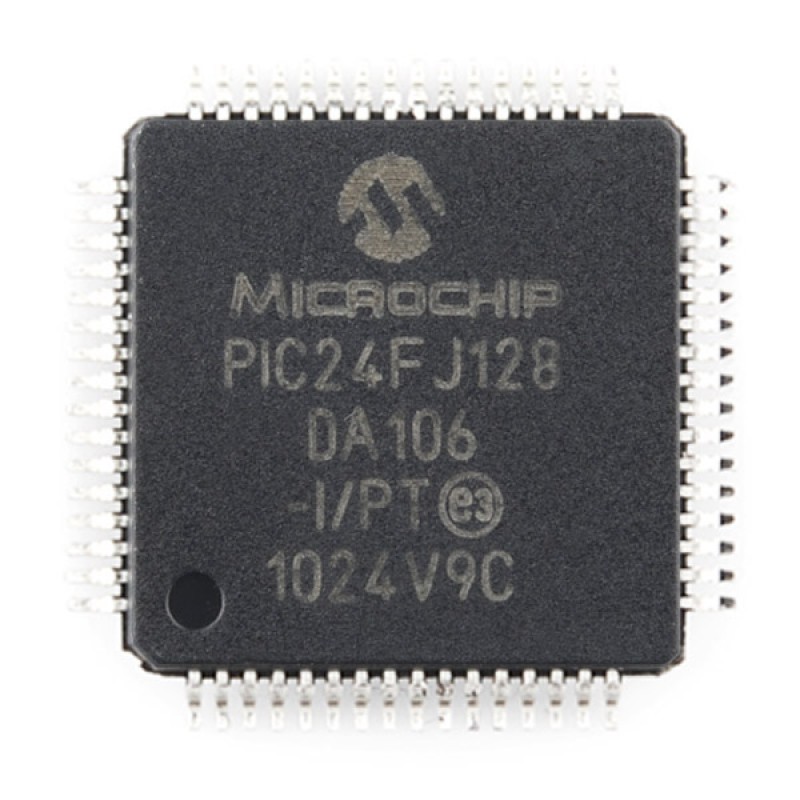

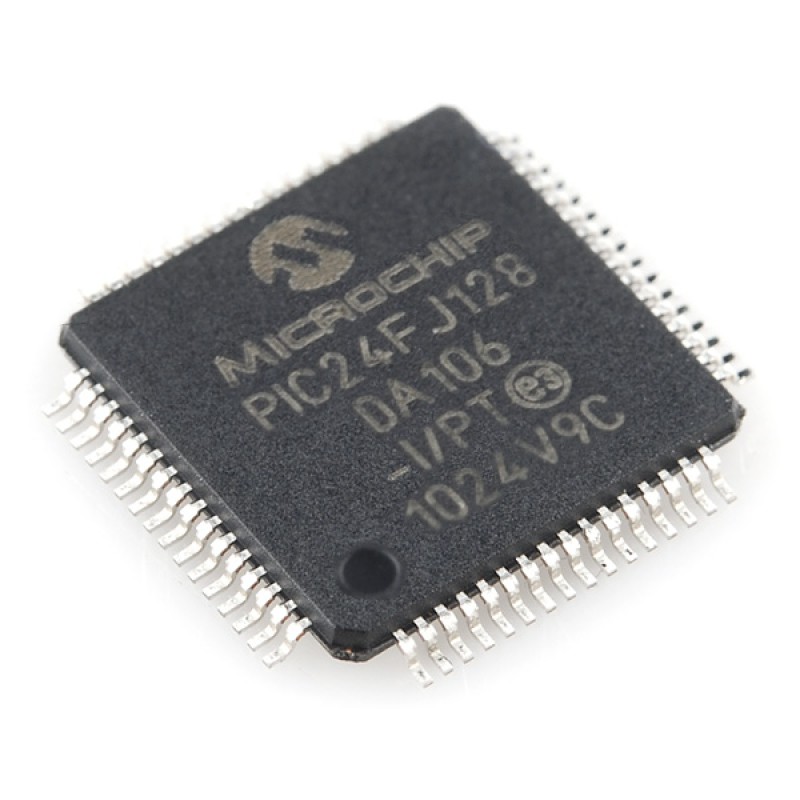

PIC24FJ128DA106
The PIC24FJ256DA210 family enhances on the existing line of Microchip‘s 16-bit microcontrollers,
adding a new Graphics Controller (GFX)
module to interface with a graphical LCD display and also adds large data RAM, up to 96 Kbytes.
The PIC24FJ256DA210 family allows the CPU to fetch data directly from an external memory device using the EPMP module.
מאפיינים:
- 16-bit modified Harvard architecture
- 16 MIPS CPU Speed
- 128K Flash Program Memory
- 24,576 bytes of RAM
- 2.2 to 3.6V Operating Range
- 52 I/O Pins (4-UART, 3-SPI, 3-I2C, 1-A/D 16x10-bit)
- 3x Graphics Hardware Acceleration Units
- Color Look-up Table (CLUT) with Maximum of 256 Entries
- Direct Interface to Monochrome, C-STN, TFT, OLED
- Resolution up to 640x480 @30Hz, 16 bpp, or 480x272 @60Hz, 16 bpp
- USB v2.0 On-The-Go (OTG) Compliant
- Dual Role Capable – Can act as either Host or Peripheral
- Up to 24x Capacitive touch sensing
