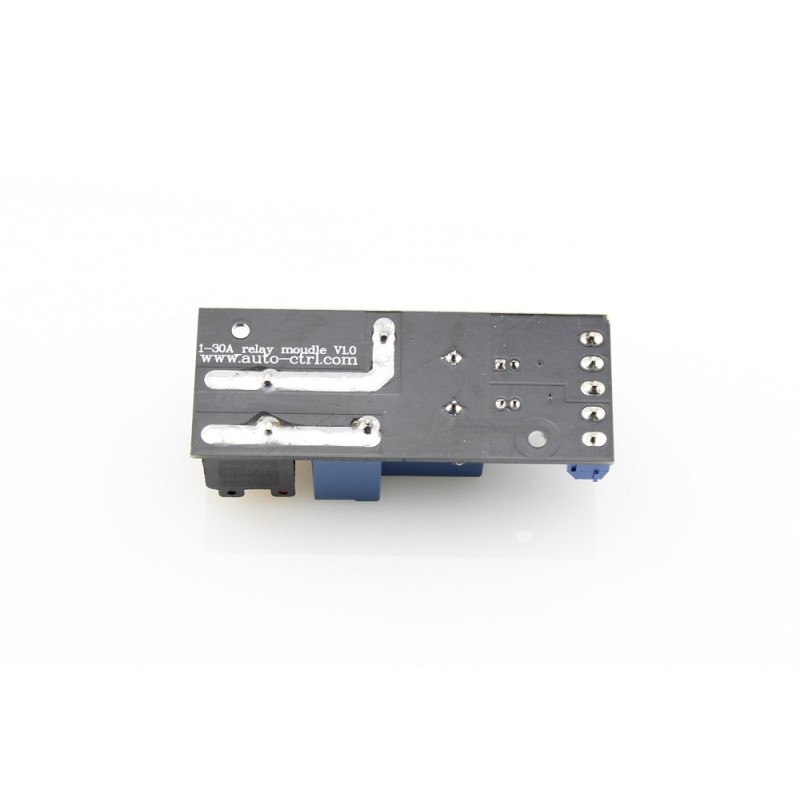

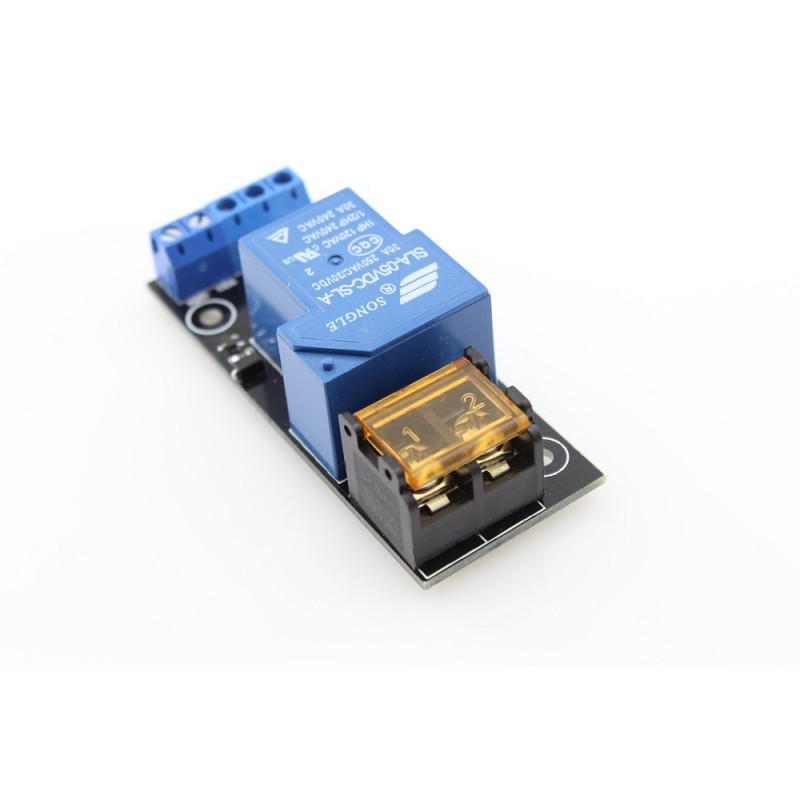

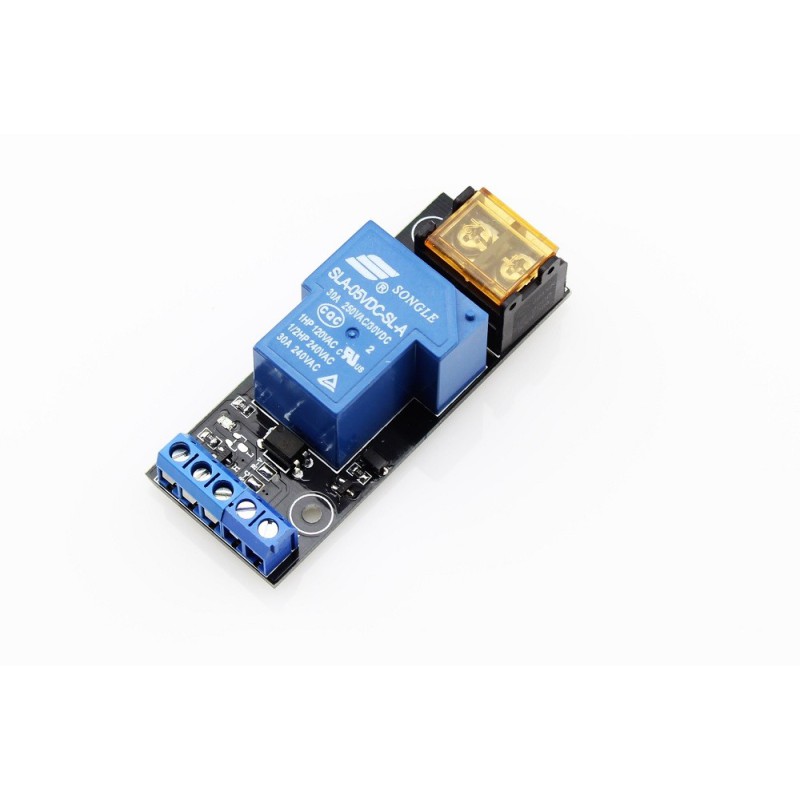

Large Current Relay Module- 30A
The Relay is the most common used module in actually application such as home automation, and sometimes you need to control large current such as the air conditioning/water heater. That is what this Large Current Relay Module can be help.
This Large Current Relay Module is a high quality Single Pole Souble Throw Relay(SPST). When the relay not triggered, the 2 outputs is disconnected; when the relay triggered(Logic Low), the 2 outputs connected, the max current can be up to 30A@240VAC or 30A@30VDC, which would be enough for most of the home appliances.
Specification
- Size: 75mm x 30mm x 22mm;
- Control Voltage: 5V
- Nominal Current: 185mA
