RGB LED Breakout - WS2812B

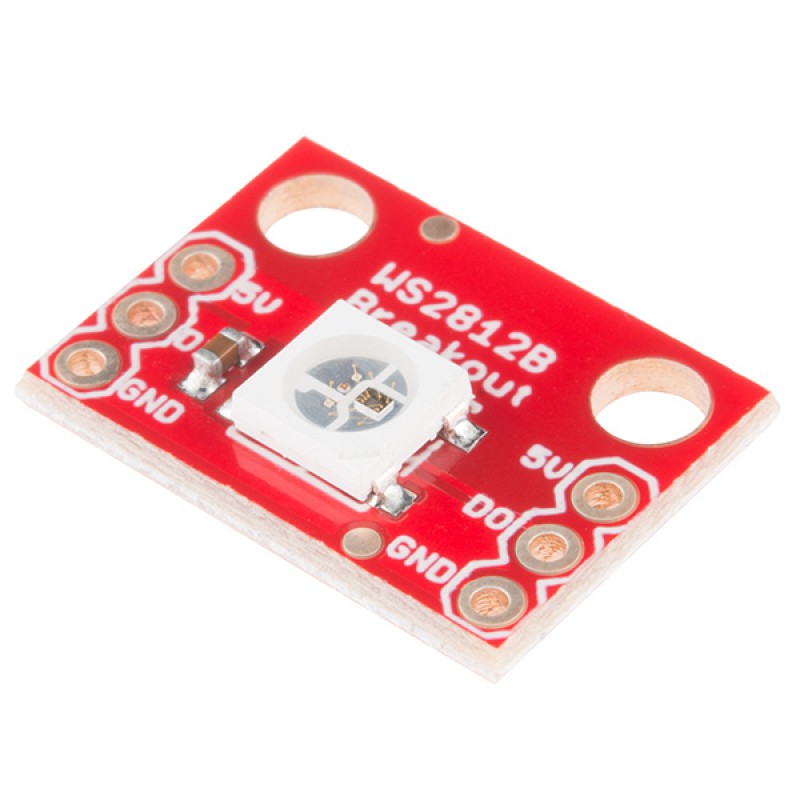

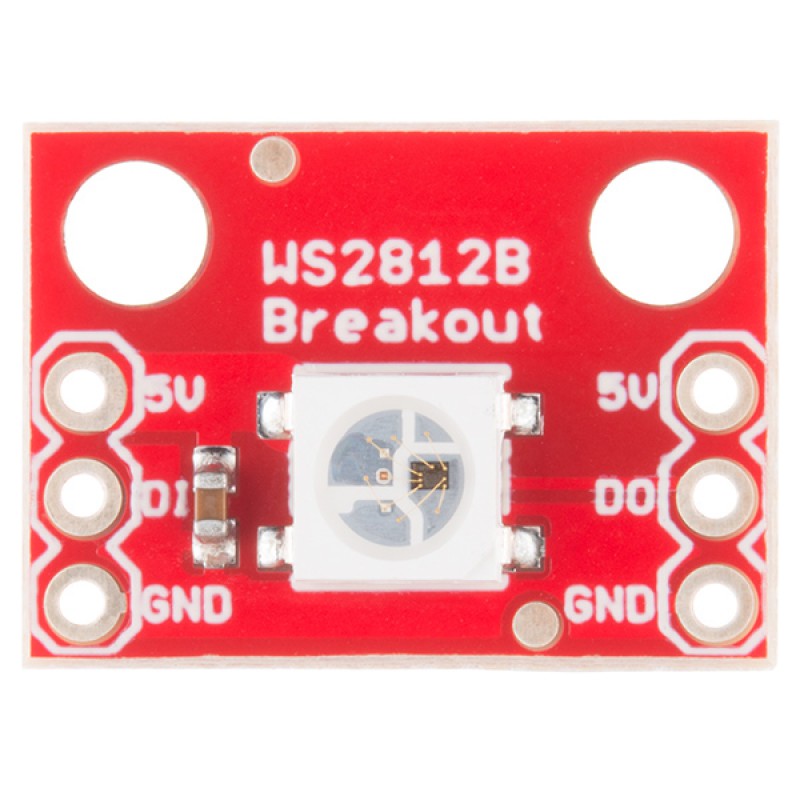

This is a breakout board for the WS2812B RGB LED.
The WS2812B (or “NeoPixel”) is actually an RGB LED with a WS2811 built right into the LED! All the necessary pins are broken out to 0.1" spaced headers for easy bread-boarding.
Several of these breakouts can even be chained together to form a display or an addressable string.
- Schematic
- Eagle Files
- Hookup Guide
- Datasheet (WS2812B)
- GitHub (Design Files & Example Code)
