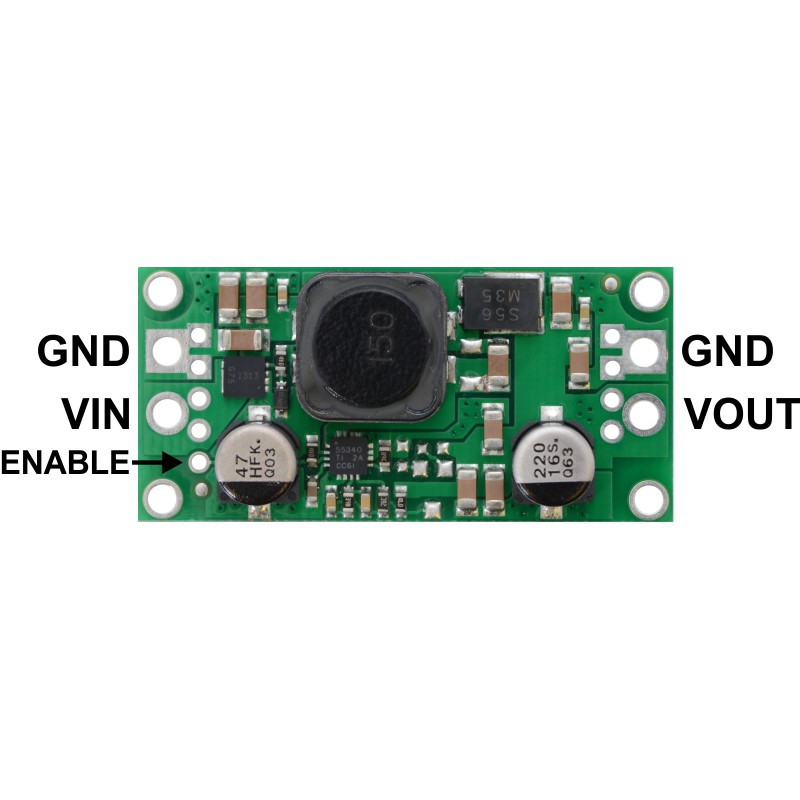

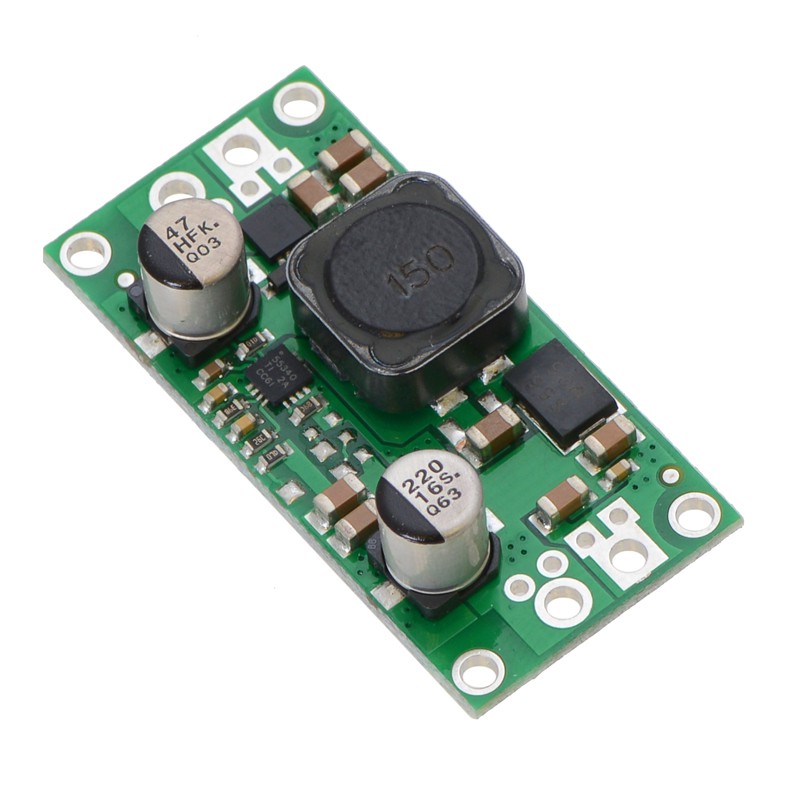

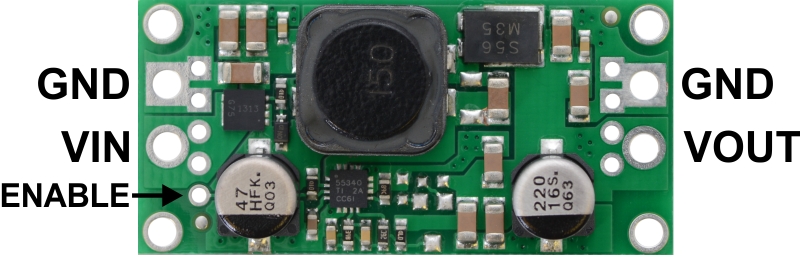

Pololu 12V Step-Up/Step-Down Voltage Regulator S18V20F12
This powerful step-up/step-down regulator efficiently produces a fixed 12V output from input voltages between 3V and 30V while allowing a typical output current of up to 2A when the input voltage is close to the output voltage and offering typical efficiencies of 80% to 90%. Its ability to convert both higher and lower input voltages makes it useful for applications where the power supply voltage can vary greatly, as with batteries that start above but discharge below the regulated voltage.

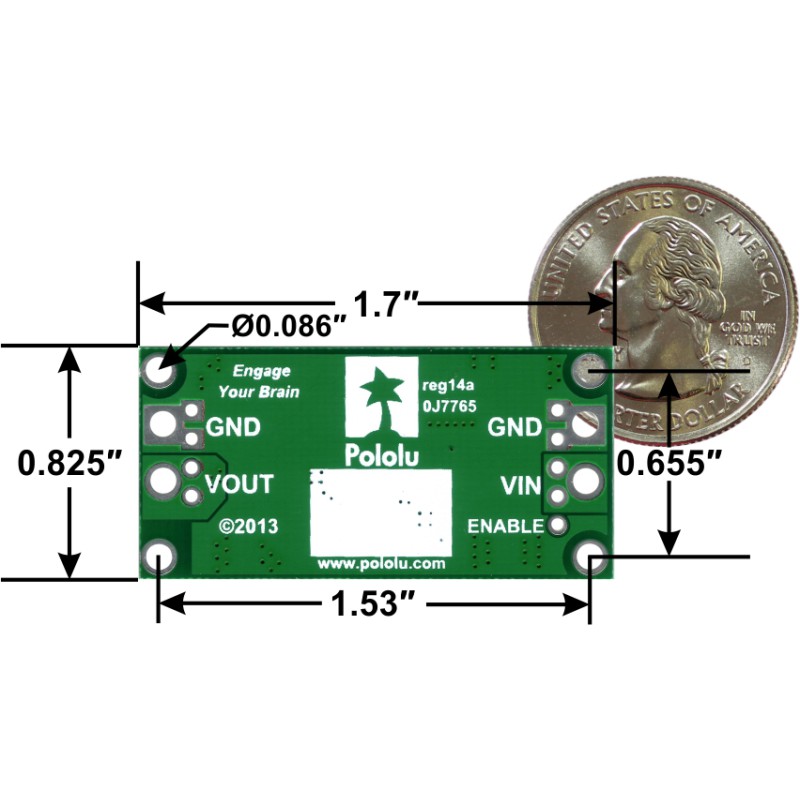

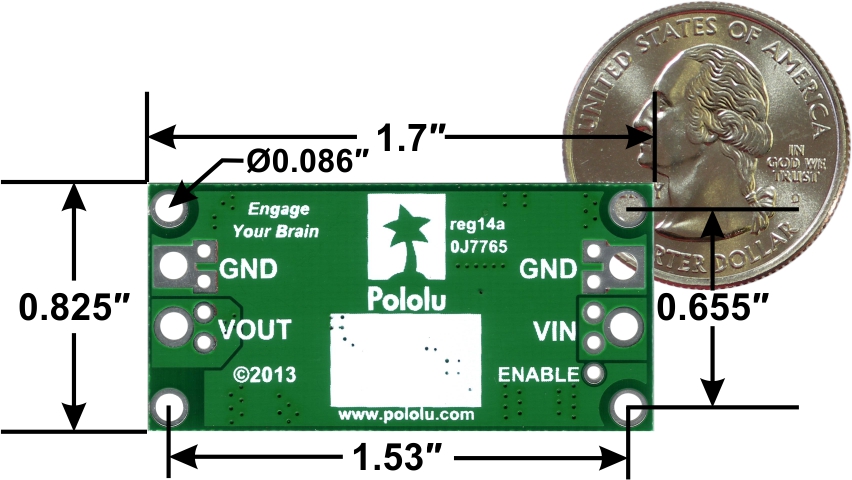

Dimensions
| Size: | 0.825″ × 1.7″ × 0.38″1 |
|---|---|
| Weight: | 7.5 g2 |
General specifications
| Minimum operating voltage: | 2.9 V |
|---|---|
| Maximum operating voltage: | 32 V3 |
| Maximum output current: | 2 A4 |
| Output voltage: | 12 V |
| Reverse voltage protection?: | Y5 |
| Maximum quiescent current: | 5 mA6 |
