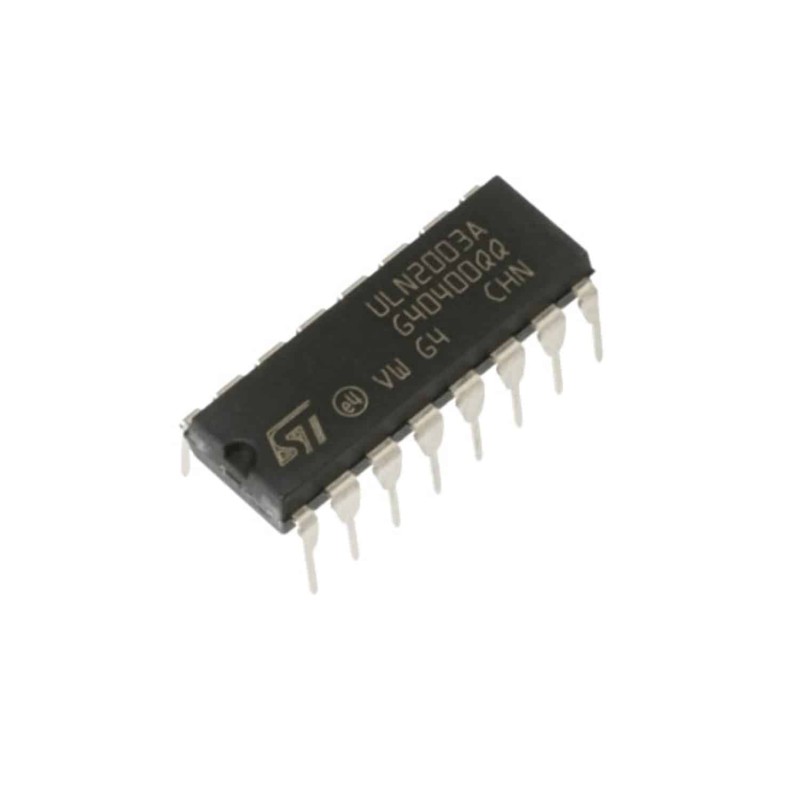

Darlington Array ULN2003

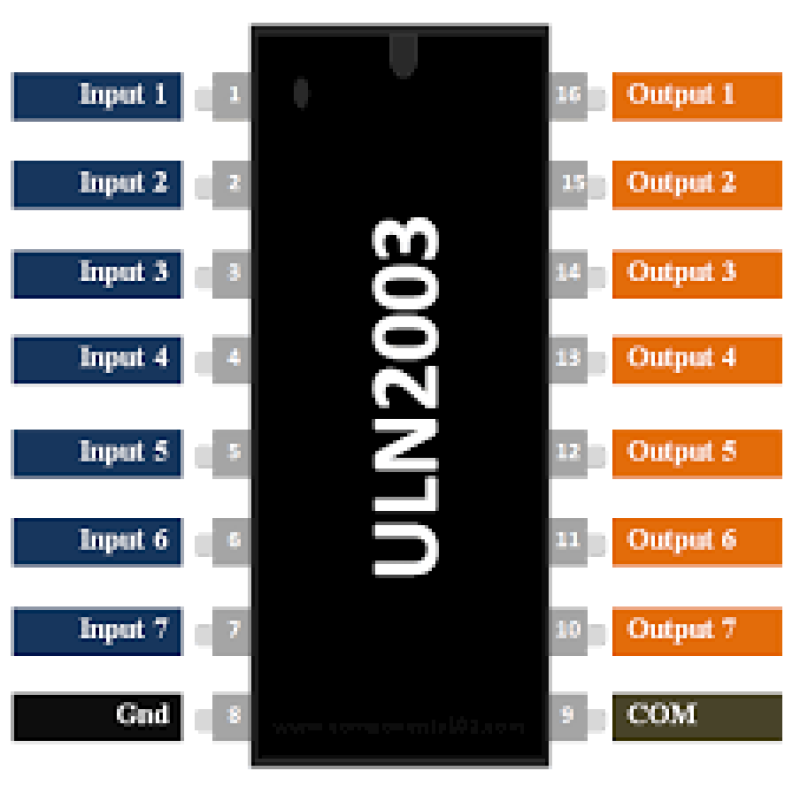

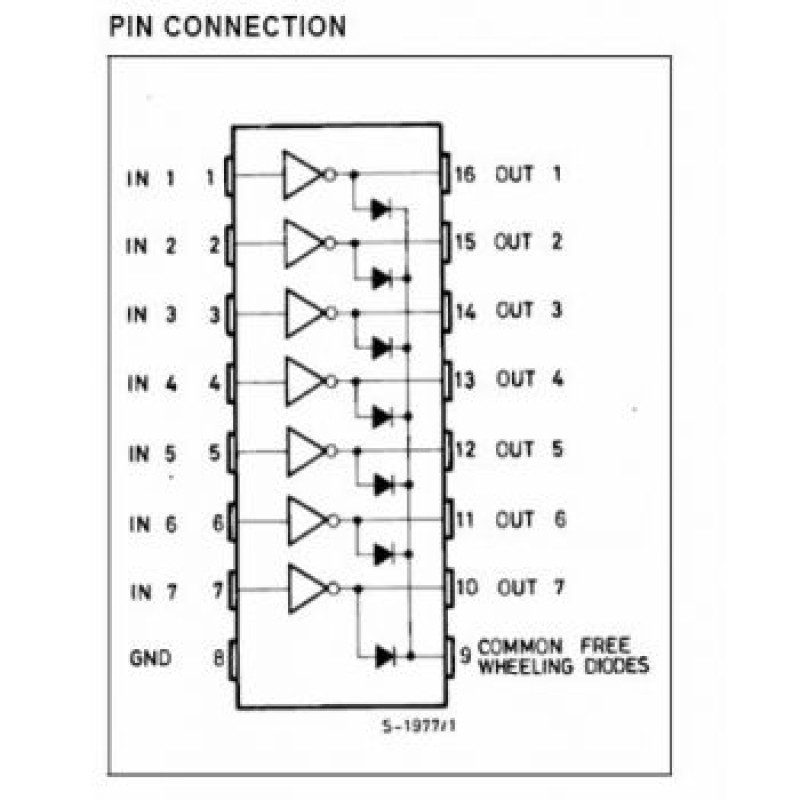

The ULN2003 internally employs high voltage, high current darlington arrays each containing seven open collector darlington pairs with common emitters. Each channel rated at 500mA and can withstand peak currents of 600mA. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout. ULN2003A is of 5V TTL, CMOS.
SPECIFICATIONS
Case:
DIP16
Company:
Texas Instruments
Part Number:
ULN2003AN
Gross Weight:
0.001kg
Made in:
Taiwan
- Type of integrated circuit: Driver
- Kind of integrated circuit: Darlington, Transistor array
- Output current: 0.5A
- Output voltage: 50V
- Number of channels: 7
- Mounting: THT
- Operating temperature: -40...85°C
- Input voltage: 30V
- Case: DIP16
