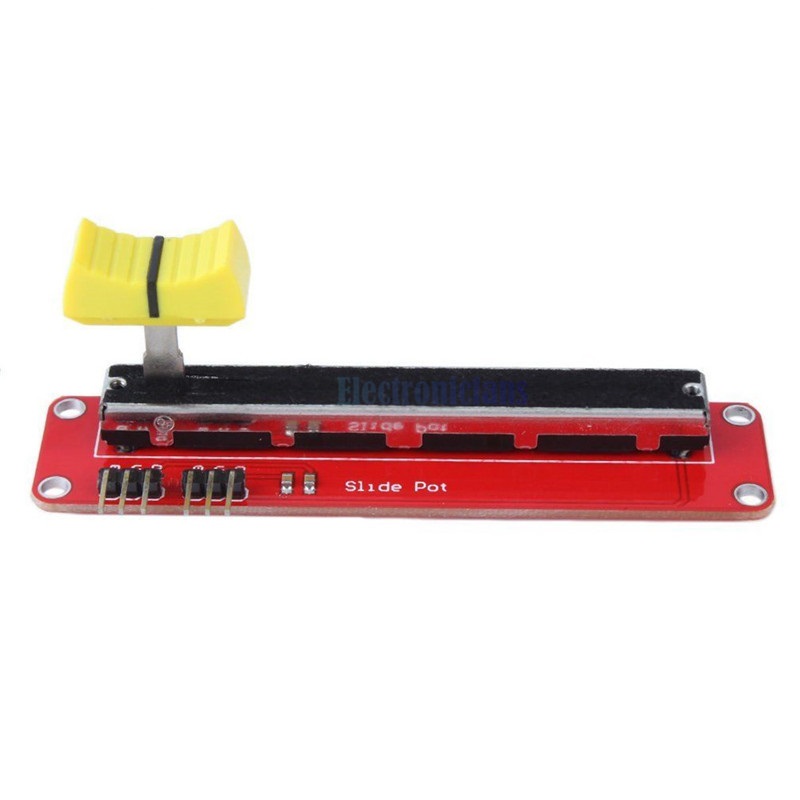

10k Linear Slide Potentiometer Module
Description

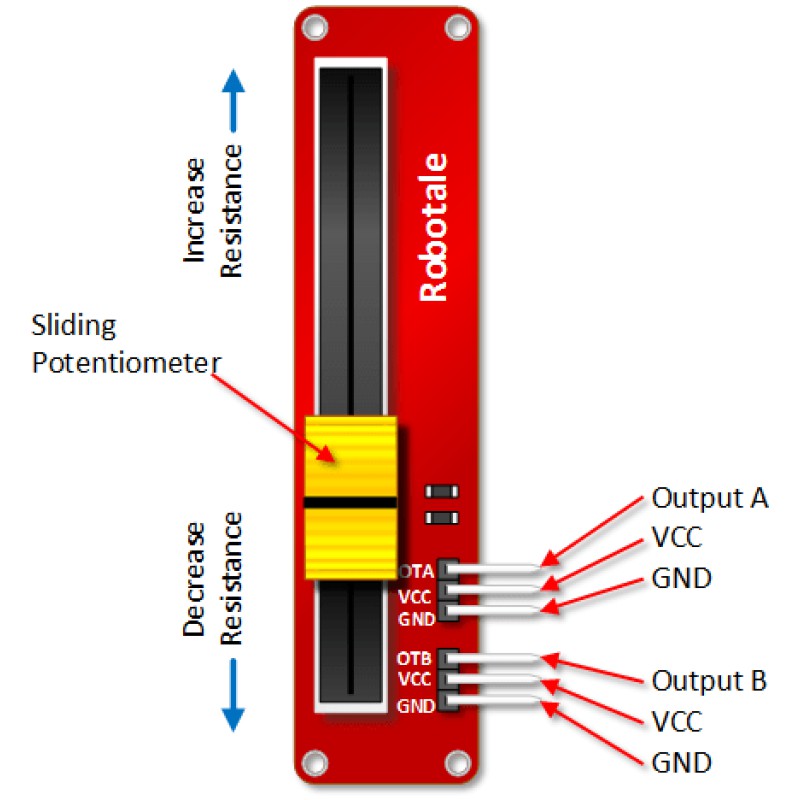

This is module has two 10K potentiometers in one module. In most applications youwill only require three connections to your Arduino (i.e., VCC, GND and Output A/B). This dual potentiometer can be used in Stereo Audio volume control application, where you may need to control the Left and Right channels simultaneously but without mixing the channels in each other.
A slide potentiometer, offers some benefits to an operator interface. For example, controlling up and down, forward and reverse, left and right, can be confusing when incorporating a rotary potentiometer. Slide potentiometers, when positioned correctly, can lessen that confusion.
Technical Specifications
- Size: 90mm (L), 20 mm (W), 30mm (H)
- Knob height above pcb 26.7mm
- Slider Maximum displacement: 60mm
- Pin pitch: 2.54mm
- PCB Color: Red
- Voltage: 3.3 V, 5 V
- Output: Analog Voltage from 0.0V to VCC
- Resistance: 10 k
-
Type: Linear
Documents and Downloads
- ArduinoTutorial
