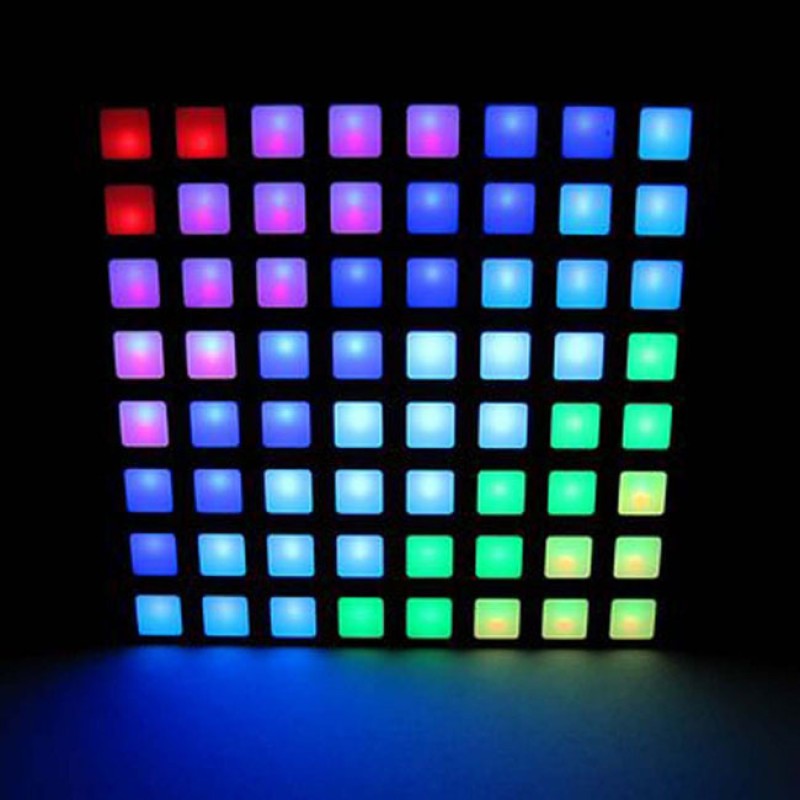

60mm Square 8*8 LED Matrix - Square RGB LED Square-Dot
This is an awesome large sized RGB LED Matrix with square RGB LED.The usage and pin definition is the same as the 60mm Square 8*8 LED Matrix - Super Bright RGB,while the LED on this module are square and more transparent, the overall effect of this module is more colorful.
Specification
- Dot Size: 5.0mm
- Pixel Array: 8x8
- Dimension: 60mmx60mm
- Reverse Voltage(Max): 5V
- Forward Current(Max) : 20mA
- Peak Forward Current(Max): 60mA
- Power Dissipation(any seg): 40mW
- Operating Temperature(Max): -10~+80 degree
- Storage Temperature(Max): -10~+80 degree
- Lead Solder Temperature(Max): for 3 seconds at 260 degree
