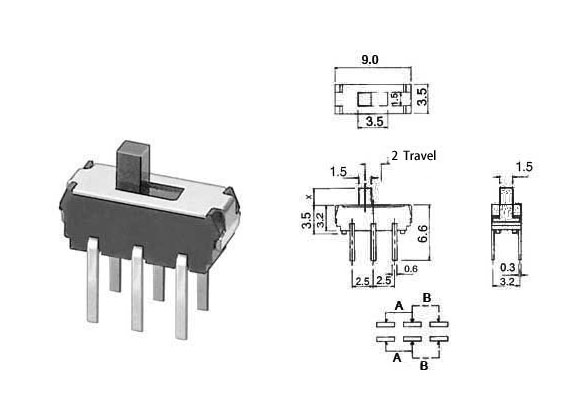

Slide Switcher 2P2T

Slide Switcher 2P2T

Slide Switcher 2P2T

This is Slide Switcher 2P2T.Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.

Specification

  • Rating: DC 6V 0.3A
  • Circuit:2C-2P
  • Contact resistance:70mΩ max
  • Operating Force:200±100gf
  • Operating life:10,000 Cycles
  • sold at one unit
