Tamiya 70143 Universal Arm Set

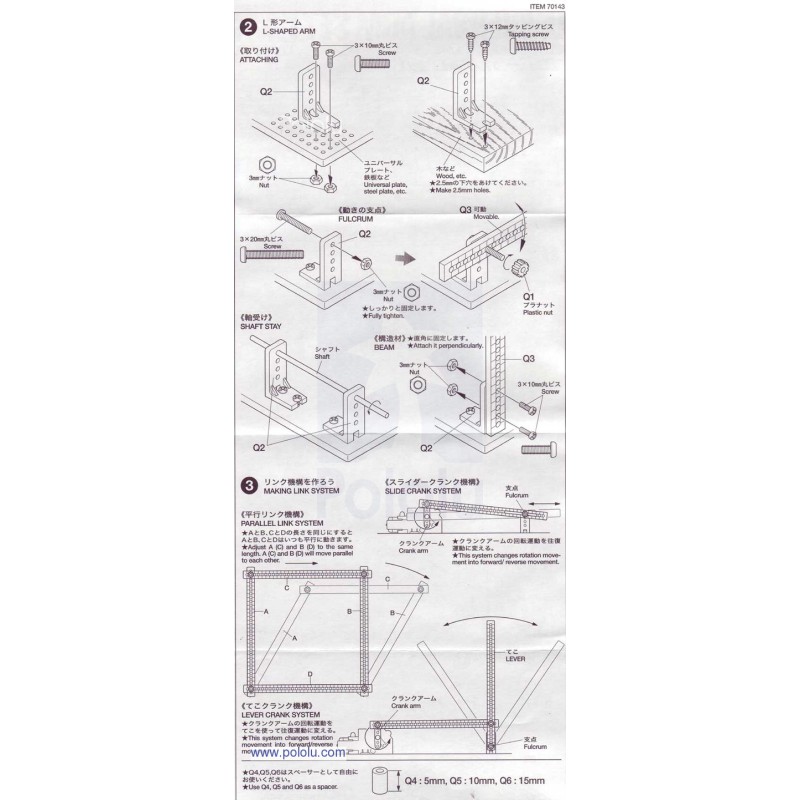

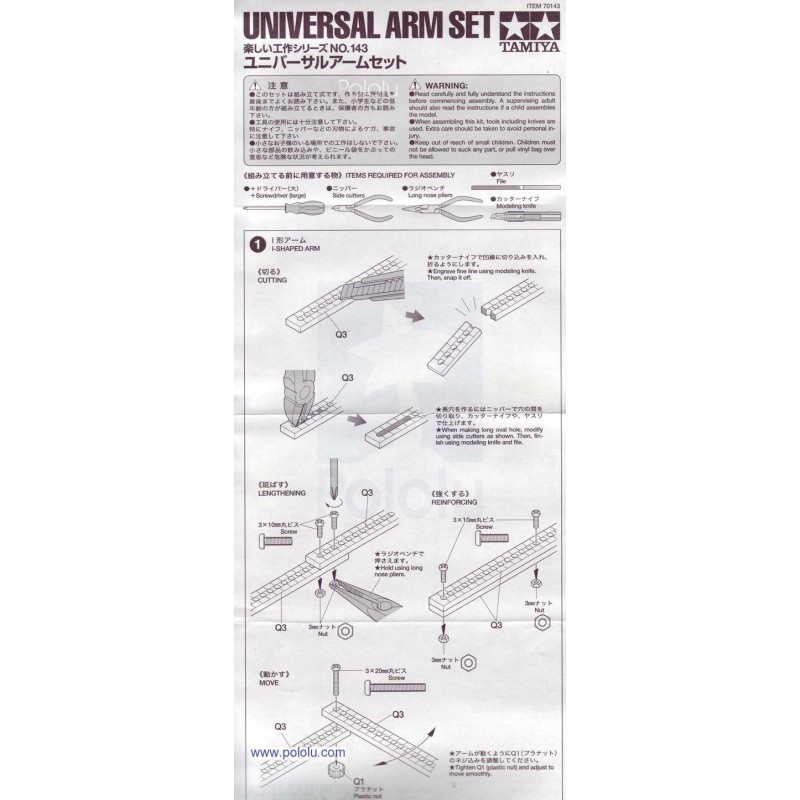

The Tamiya 70143 Universal Arm Set can be used to create crank systems, link systems, and structures for your robot or other project, as illustrated at the bottom of the instructions shown here.
This set includes four 33-hole arms with 3mm holes spaced 5mm apart. The arms can be cut to the desired length (each arm has regularly-spaced grooves that help to make a straight cut), and the holes can be modified to create longer slots for use in a cranking system. Four L-shaped brackets are included in the set for mounting axles or for use as structural support. Also included are twelve spacers at 5mm, 10mm, and 15mm lengths, eight plastic nuts, and a metal screw and nut set.
For a longer arm, see the Tamiya 70156 Long Universal Arm Set.
Included Parts
- Four arms with 33 3mm holes spaced 5mm apart (10x170mm, 0.4"x6.7")
- Four four-hole L-shaped brackets
- Four 5mm spacers
- Four 10mm spacers
- Four 15mm spacers
- 15 3x10mm screws
- Four 3x20mm screws
- Four 3x25mm screws
- Eight 3x12mm tapping screws
- Eight plastic nuts
- 15 metal nuts
