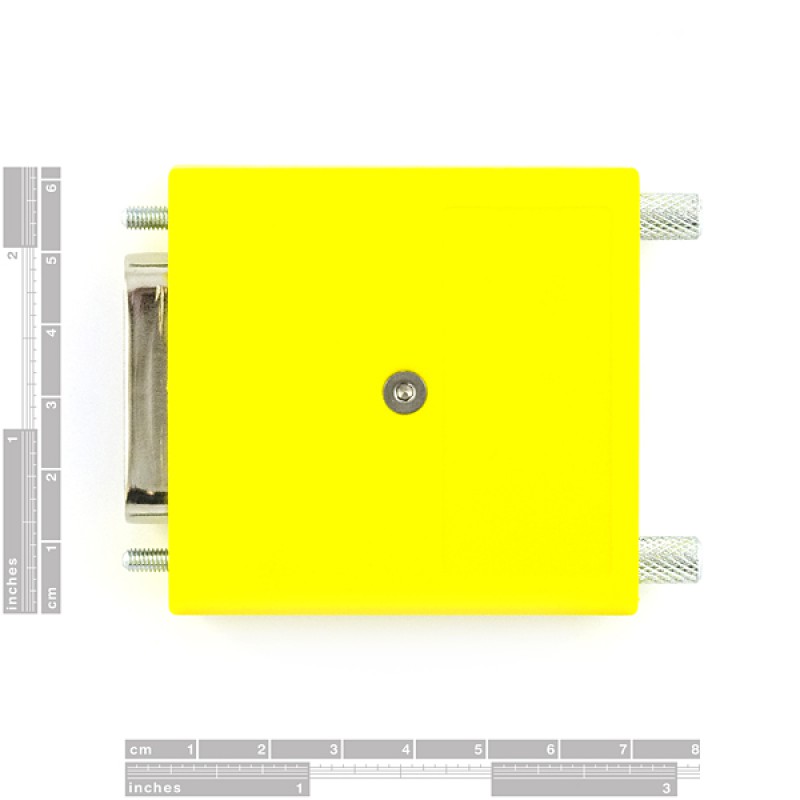

GPIB-USB Controller
Use this unique device to download data and control GPIB bus enabled oscilloscopes,
logic analyzers, function generators, power supplies,
and any other GPIB instrument seamlessly through USB!
מאפיינים:
- Drivers for Windows 98/ME/2000/XP/Vista/Win7, Mac OS-8/9/X, Linux
- Support for multiple devices
- Driver provides virtual serial port to send and receive data
- Powered by USB; no power supply needed
- No GPIB cable needed; controller plugs on to instrument
- All software configuration. No DIP switches
- USB 1.1 and USB 2.0 compatible
- Standard USB (B) and IEEE 488 (Male) connectors
Powered over USB - no external power required.
Based on the popular FTDI USB Chip - FT245R.
Drivers are currently available for most platforms including:
- Win 98, 2000, ME, XP, Vista, Win 7
- Apple OS-8, OS-9, OS-X
- Linux >2.4.0 - Drivers Built In
- Free BSD - Drivers Built In
מידות:
3x2.5x0.9"
תיעוד:
GPIB to USB Directions
