ProtoBoard TQFP44 0.8mm Pitch

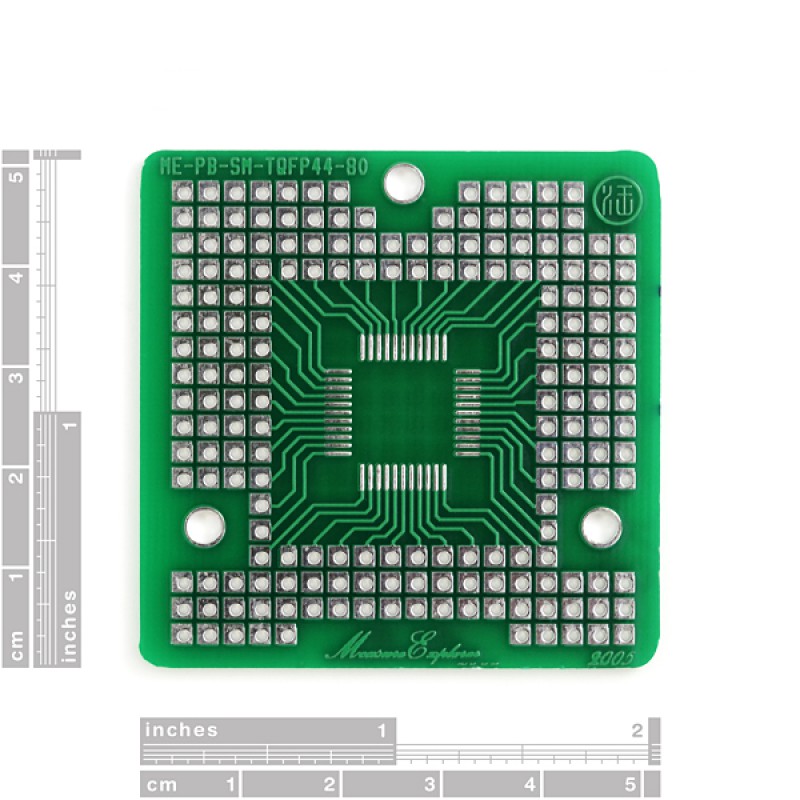

This breakout board allows for standard surface mount, SMD and SMT, TQFP 44 pin packages with 25mil
(0.8mm) spacing between pads.
The PCB uses a double copper layer plated thru-hole surface mount design.

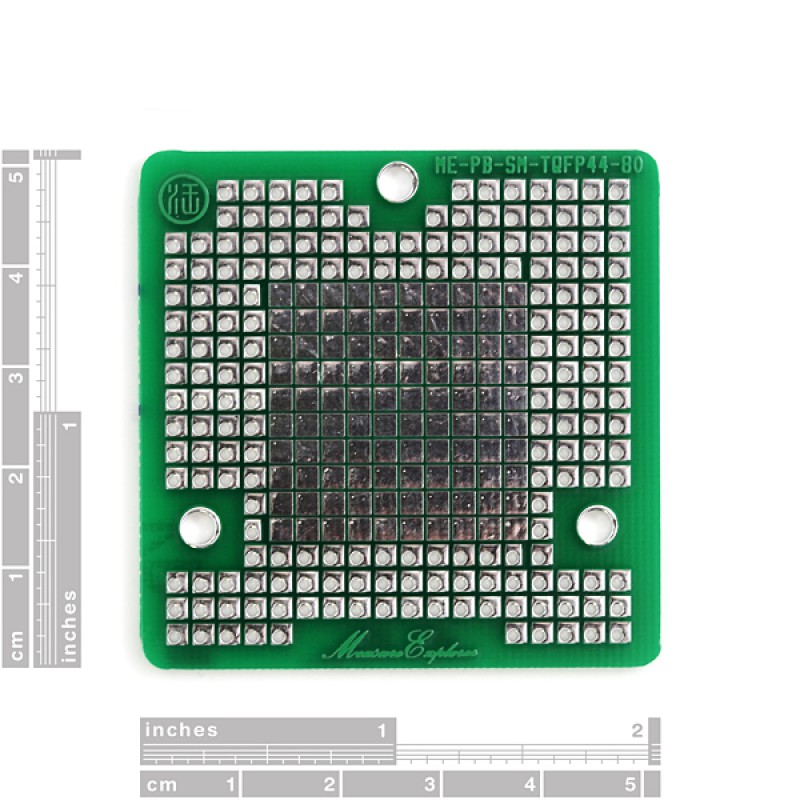

Square copper pads are located on the bottom side of the board for other surface mount components.
Plated thru-holes are off the center of square copper pads for creating soldering space.
These work great with our protoboards.
Check out our Surface Mount Soldering Tutorials!
מאפיינים:
- 44 pin, 31mil (0.8mm) spacing.
- 2 inch square (50.8mm).
- Three 4-40 standard screw holes for fixing board position.
