Pololu Wheel 80×10mm Pair - Black

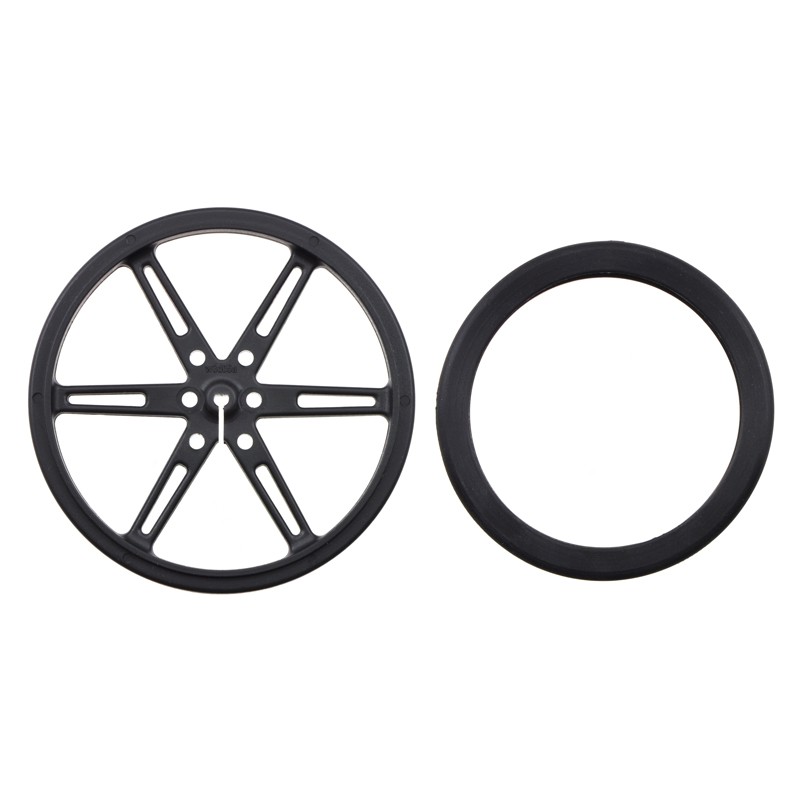

These black plastic wheels press-fit onto the 3mm D shafts on many of our motors, including our micro metal gearmotors and our mini plastic gearmotors, to make a nice drive solution for small robots. The wheels have silicone tires and measure 80mm (3.15″) in diameter. Six additional mounting holes for 4-40 screws make it possible to use the wheel with several of our universal mounting hubs. The wheels are sold in pairs.

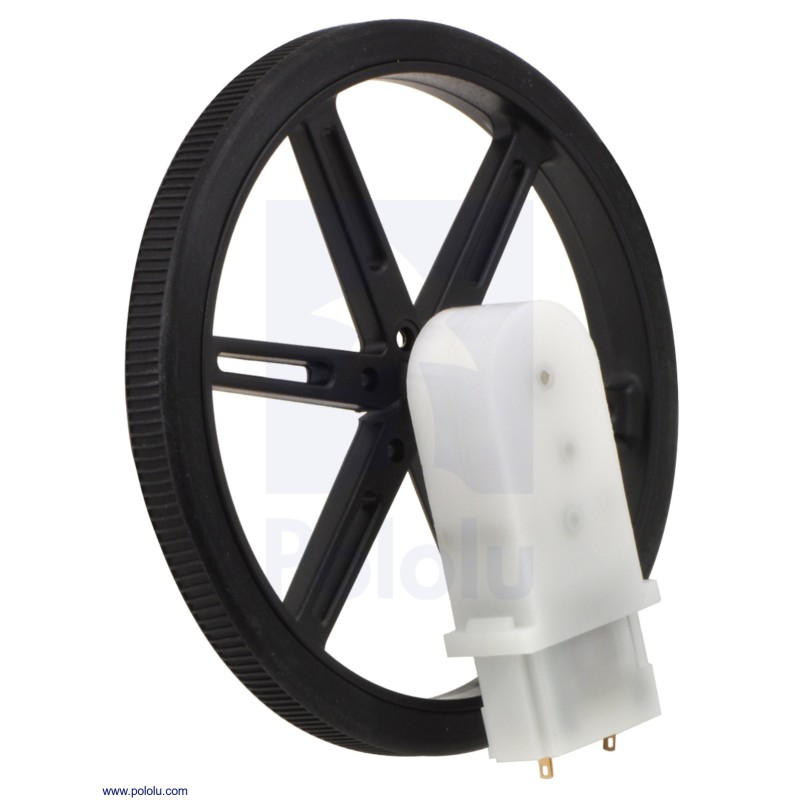

These wheels are designed to press-fit securely onto the 3mm D output shafts on many of our gearmotors, including our micro metal gearmotors and our mini plastic gearmotors. The wheels have silicone tires and measure 80mm (3.15″) in diameter. Six additional mounting holes for 4-40 screws make it possible to use the wheel with any of our universal mounting hubs. The slots in the six spokes allow additional accessories to be mounted to the wheel (e.g. decorations or parts of an encoder system).

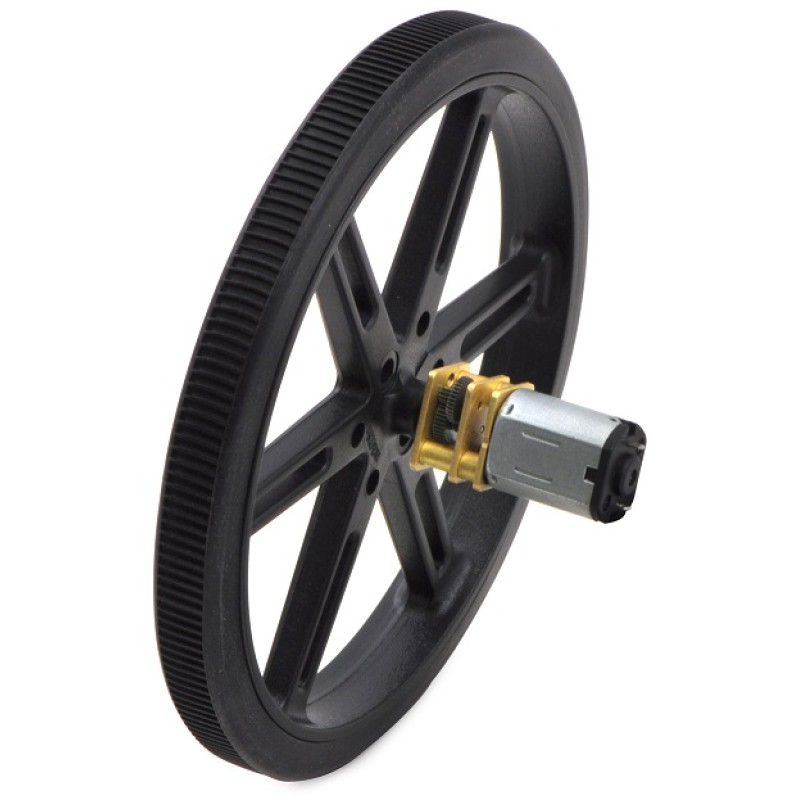

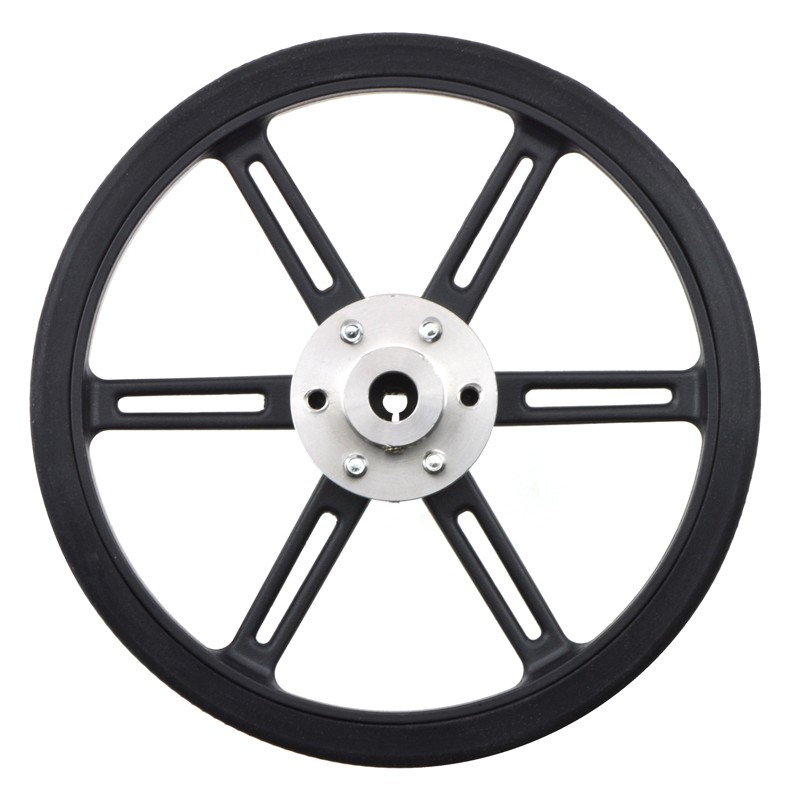

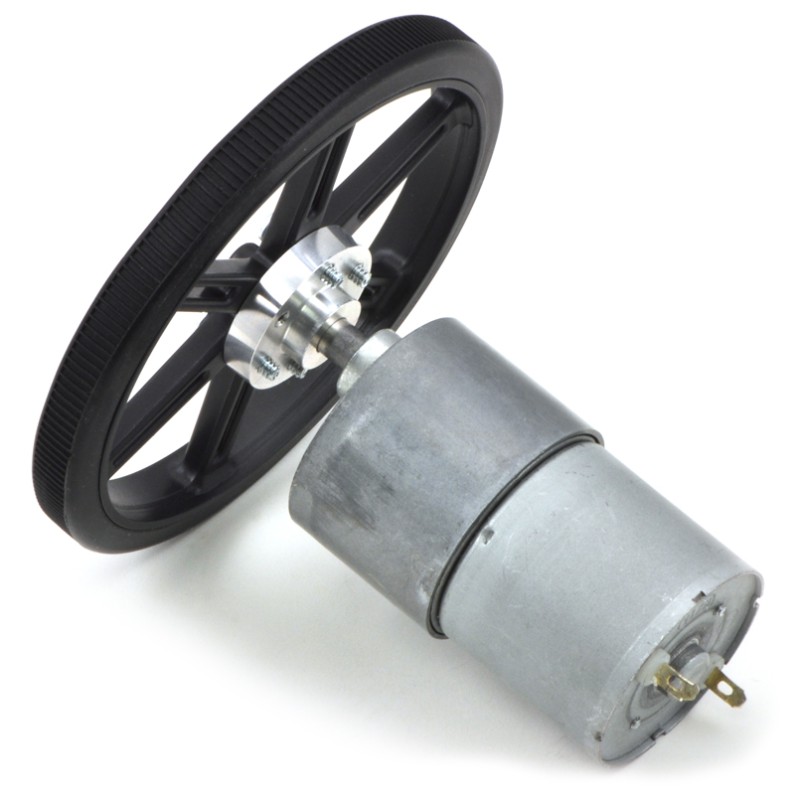

The left picture below shows a slightly larger version of this wheel mounted to a 37Dmm metal gearmotor with a universal mounting hub for 6mm shafts, and the right picture below shows a slightly larger version of this wheel mounted to a micro metal gearmotor.
Dimensions:
| Size: | 80 x 10 mm |
|---|---|
| Weight: | 0.7 oz1 |
| Shaft diameter: | 3 mm2 |
General specifications:
| Color: | black |
|---|
Notes:
- Per wheel, including tire.
- D-shaped hole for press fit onto Pololu micro and mini metal gearmotors.
File downloads
- 3D models of Pololu Wheels 80×10mm (3MB zip)
- This file contains 3D models (in the step file format) of the Pololu Wheels 80×10mm.
