1A Motor Shield For Arduino

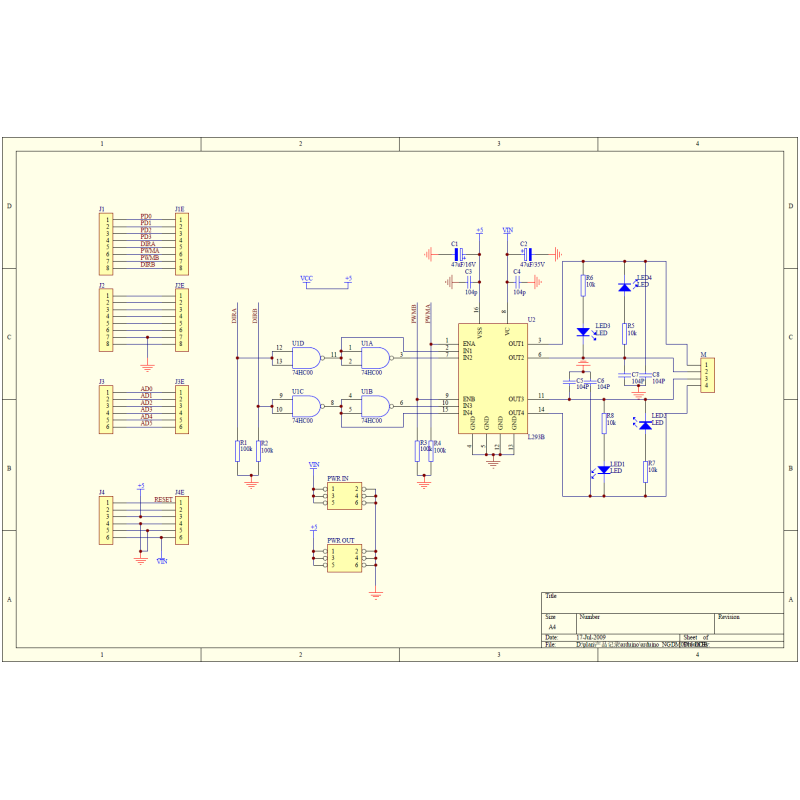

This Motor shield for Arduino uses L293 chip which allow to drive two 7-12V DC motors with maximum 1A current.
This shield can be directly mount onto standard Arduino Duemilanove and Arduino Mega.
מאפיינים
- 2 way 7-12V motor drive
- Up to 1A current each way
- PIN 4,5,6,7 are used to drive two DC motors
- Support PWM speed control
תיעוד
