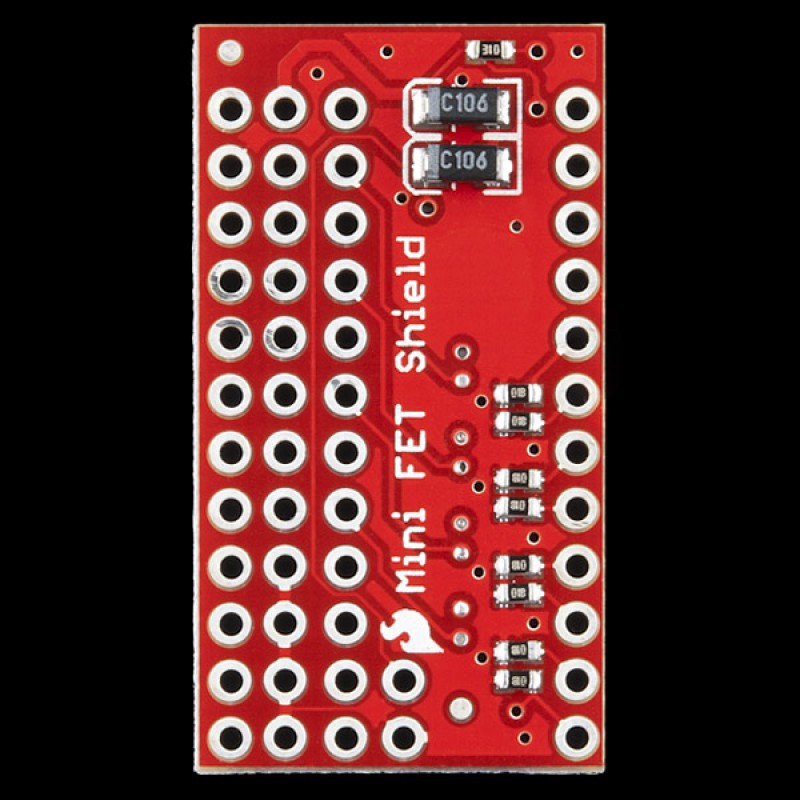

Mini FET Shield
Developed by Dave Vondle and IDEO Labs,
this board is essentially the same as our Power Driver Shield, but the
through-hole parts have been switched out for smaller SMD construction,
allowing you to to drive high-current switches with your Arduino Pro Mini.
This is a great shield for small prototyping.
Note: The power circuit chip is only rated to drive 0.6 amps.
However, we've successfully tested it to over 2A.
תיעוד:
- Schematic
- Eagle Files
- Datasheet (FDMA1024NZ)
- Datasheet (TPS61200DRCT)
- IDEO Labs Page
