ATX Power Supply Connector - Straight

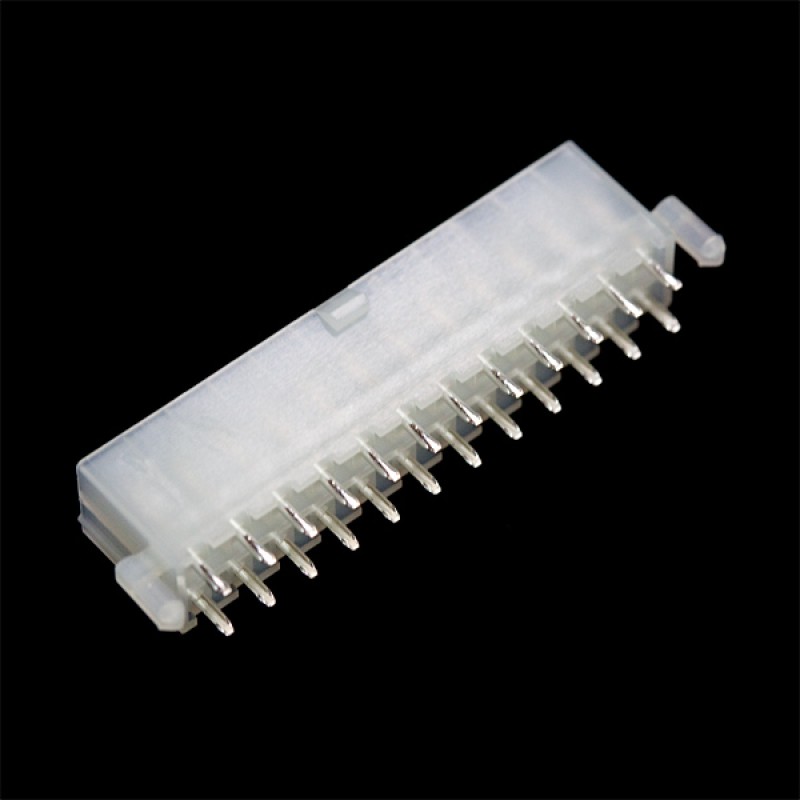

This is a 24-pin Molex Mini-Fit Jr.?
connector, commonly used as the power supply connector on ATX motherboards.

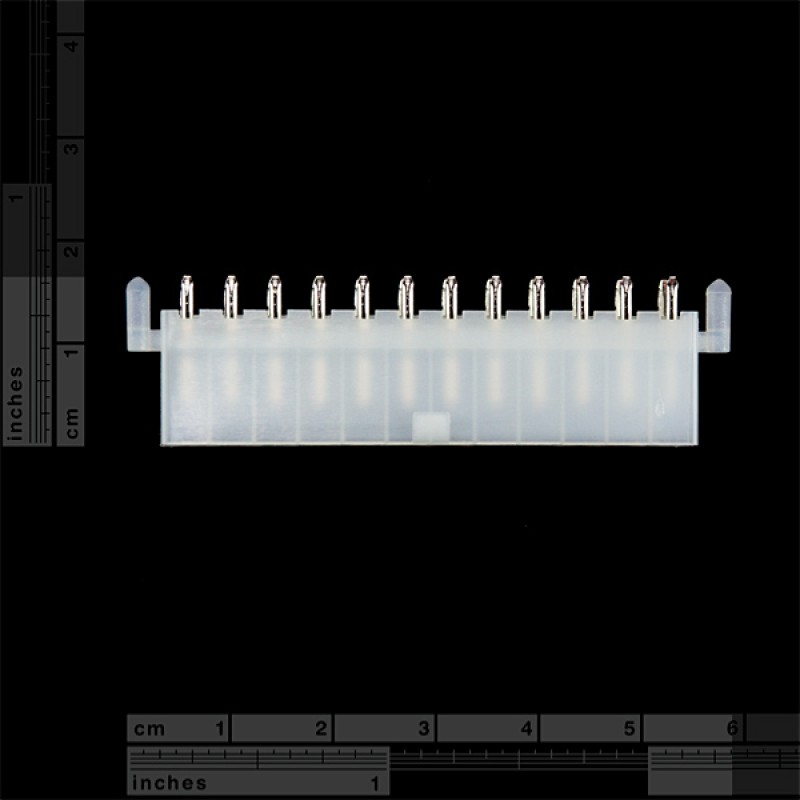

Two rows of twelve pins are broken out two rows of through-hole male headers.
See datasheet for the pin spacings and other dimensions.
Pair this connector with a standard computer
power supply and you can source a number of
different voltages (+3.3V, +5V, +12V, -12V, -5V) to your project.
תיעוד
Dimensional Drawing
