ATX Connector Breakout Board

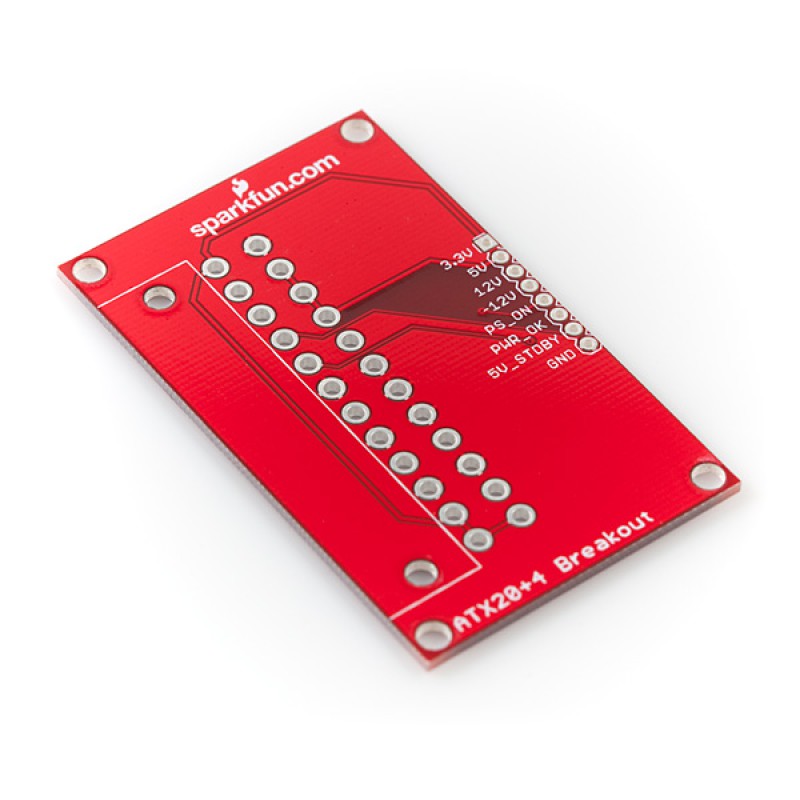

This is a breakout board for our right-angle, 24-pin ATX connector.

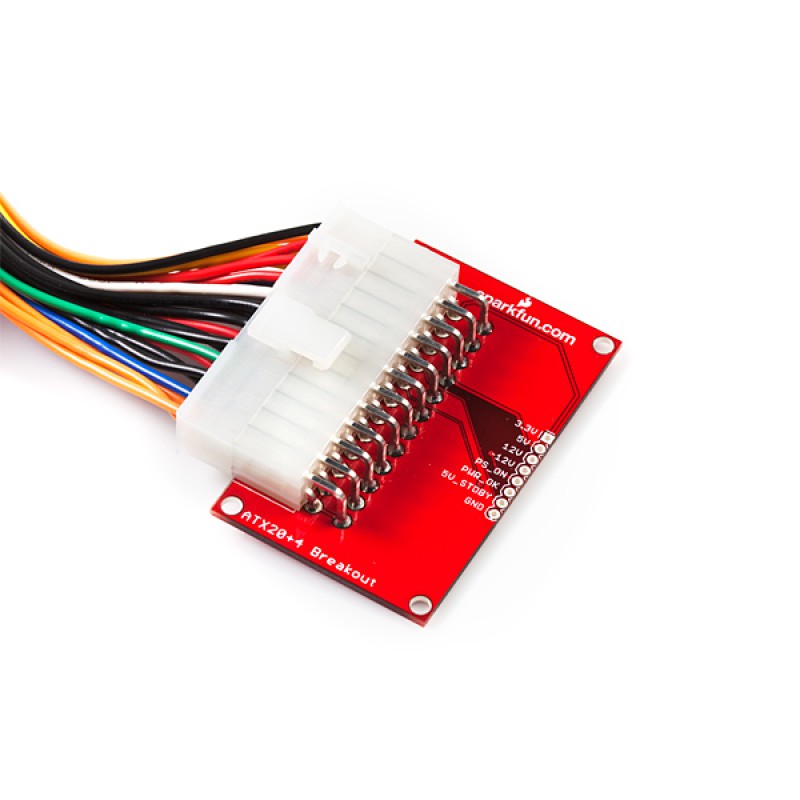

Pair this board with the ATX connector and a standard PC
power supply and you'll have 3.3V, 5V, and ±12VDC to supply to your project
. Make sure you ground the PS_ON pin to enable all of the outputs.
All outputs of the power supply are broken out to an 8-pin 0.1" header.
Note: This product is just the board, the ATX connector is not included.
מידות

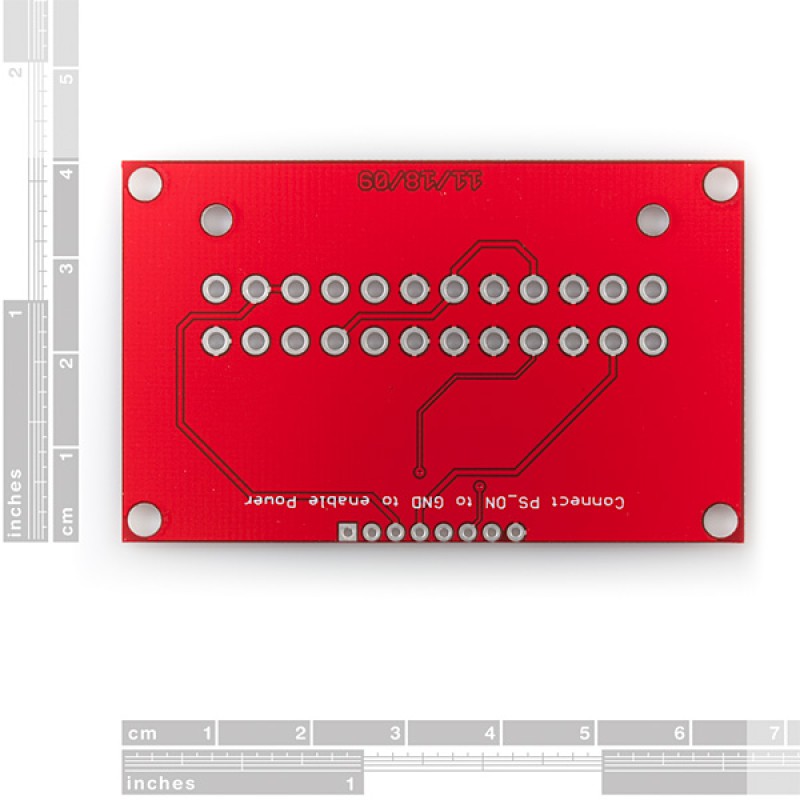

2.60 x 1.60" (66 x 40mm)
