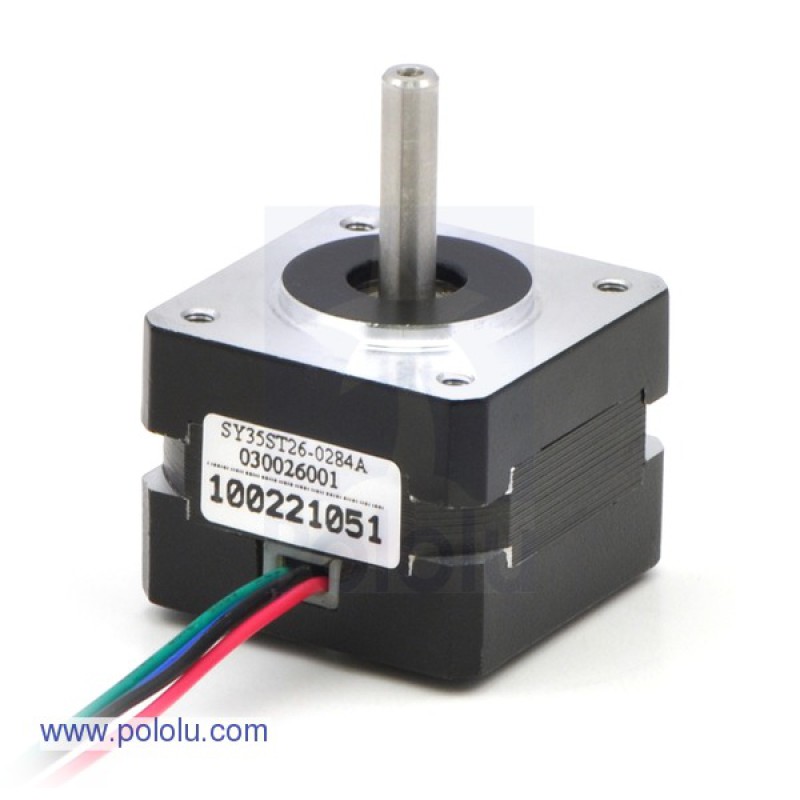

Stepper Motor: Bipolar, 200 Steps/Rev, 35x26mm, 7.4V, 280mA
This hybrid bipolar stepping motor has a 1.8° step angle (200steps/revolution).

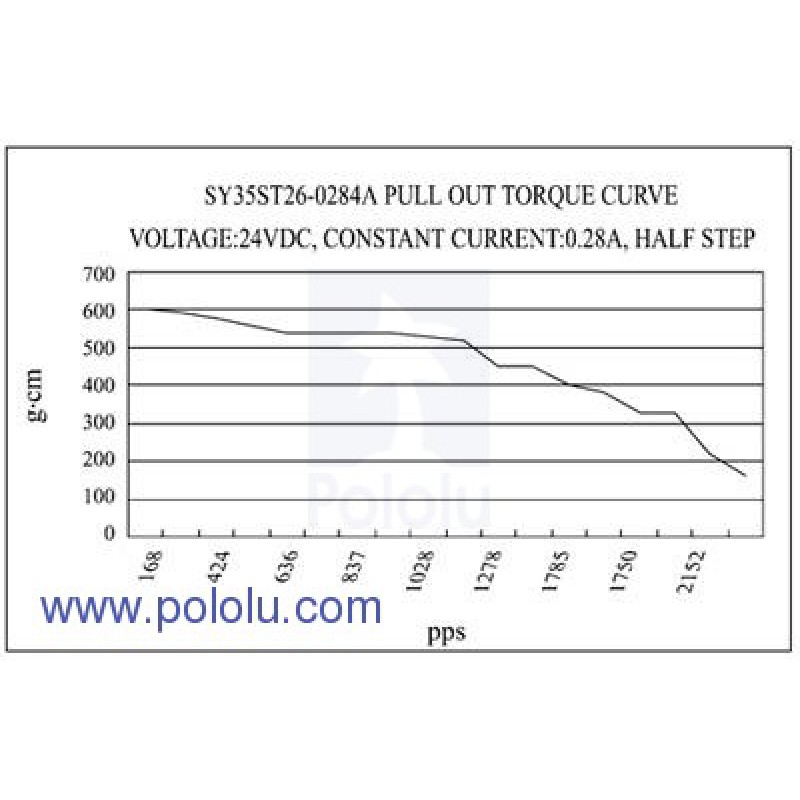

Each phase draws 280mA at 7.4V, allowing for a holding torque of 650g-cm (9oz-in).

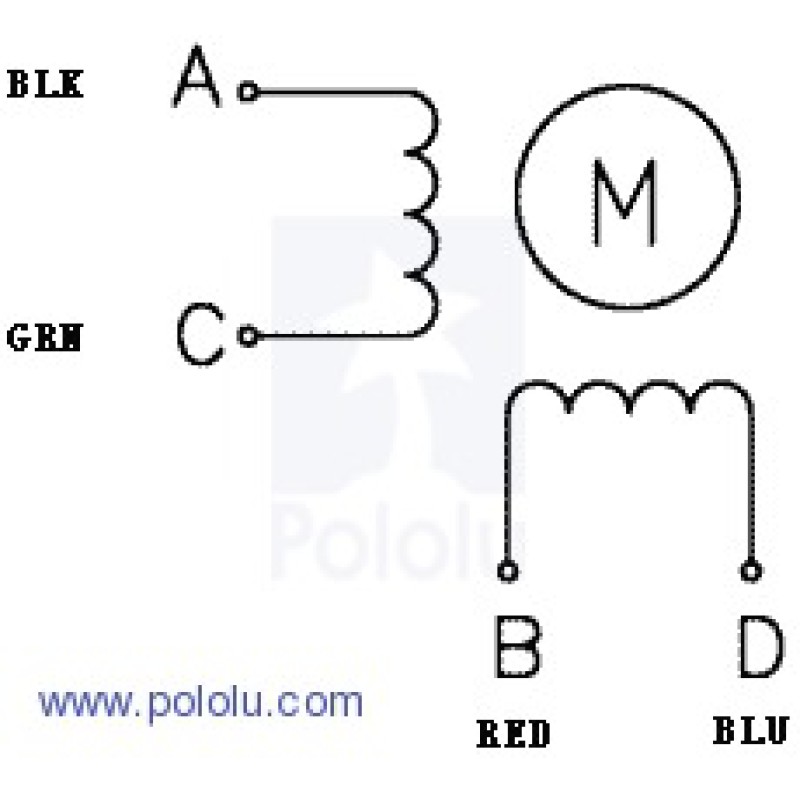

This hybrid bipolar stepping motor has a 1.8° step angle (200steps/revolution). Each phase draws 280mA at 7.4V, allowing for a holding torque of 650g-cm (9oz-in). The motor has four color-coded wires terminated with bare leads. Our 5mm universal mounting hub can be used to mount objects on the stepper motor’s 5mm-diameter output shaft.
נתונים

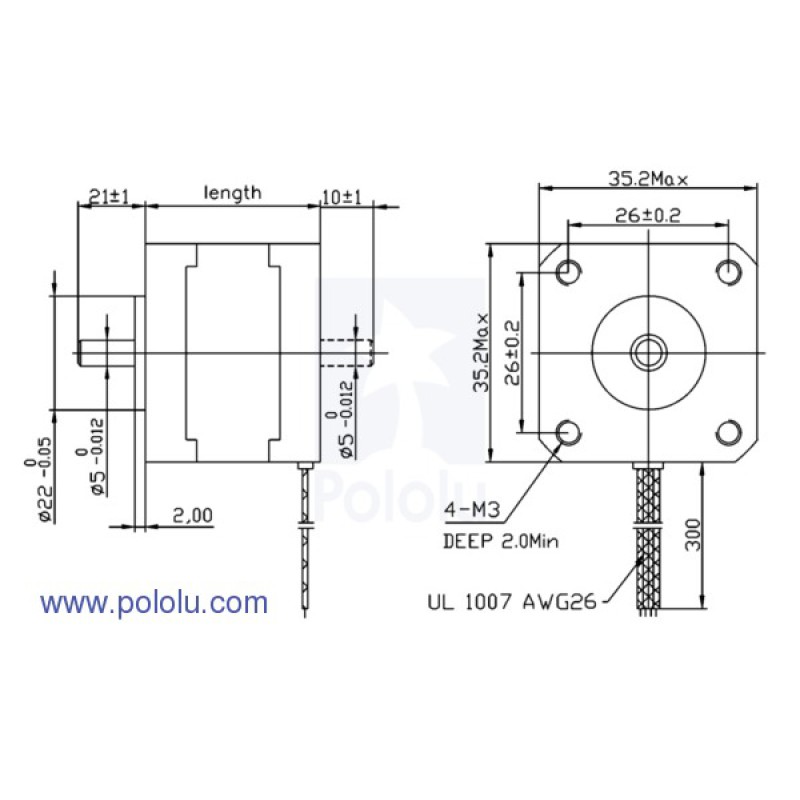

- Size: 35mmsquarex26mm, not including the shaft (NEMA 14)
- Weight: 130g (4.5oz)
- Shaft diameter: 5mm
- Steps per revolution: 200
- Current rating: 280mA per coil
- Voltage rating: 7.4V
- Resistance: 26Ohm per coil
- Holding torque: 650g-cm (9oz-in)
- Inductance: 19.2mH per coil
-
Lead length: 12in
מידות
| Size: | 35 mm square x 26 mm1 |
|---|---|
| Weight: | 130 g |
| Shaft diameter: | 5 mm |
מאפיינים כלליים
| Steps per revolution: | 200 |
|---|---|
| Current rating: | 280 mA2 |
| Voltage rating: | 7.4 V |
| Holding torque: | 9 oz·in |
| Resistance: | 26 Ohm2 |
| Inductance per phase: | 19.2 mH |
| Lead length: | 12 in |
