Stepper Motor: Bipolar, 200 Steps/Rev, 35x36mm, 2.7V, 1000mA
This hybrid bipolar stepping motor has a 1.8° step angle (200steps/revolution).
Each phase draws 1000mA at 2.7V, allowing for a holding torque of 1400g-cm (20oz-in).
This hybrid bipolar stepping motor has a 1.8° step angle (200steps/revolution).
Each phase draws 1000mA at 2.7V, allowing for a holding torque of 1400g-cm (20oz-in).

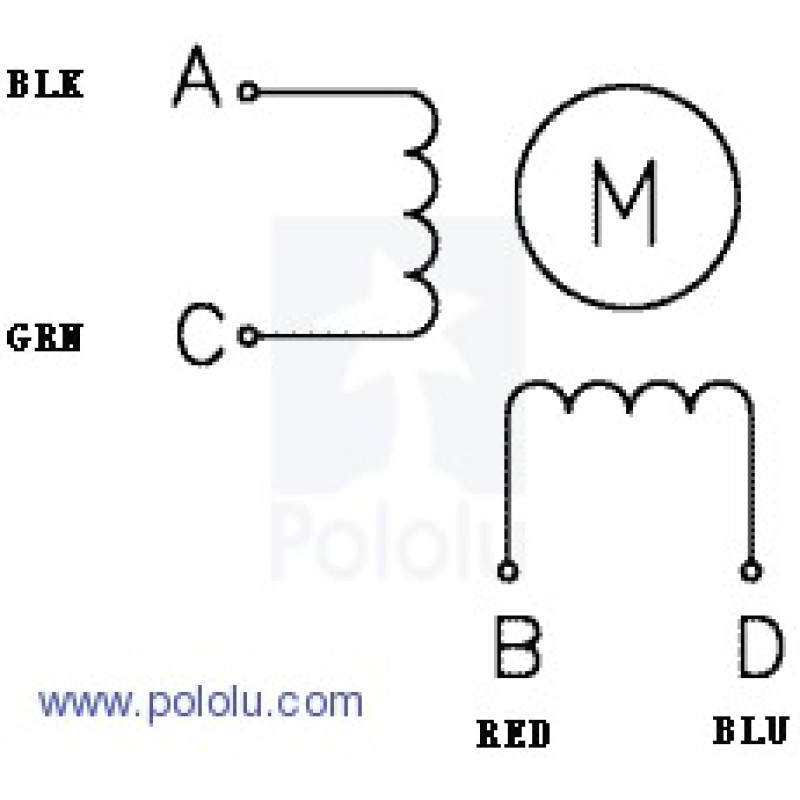

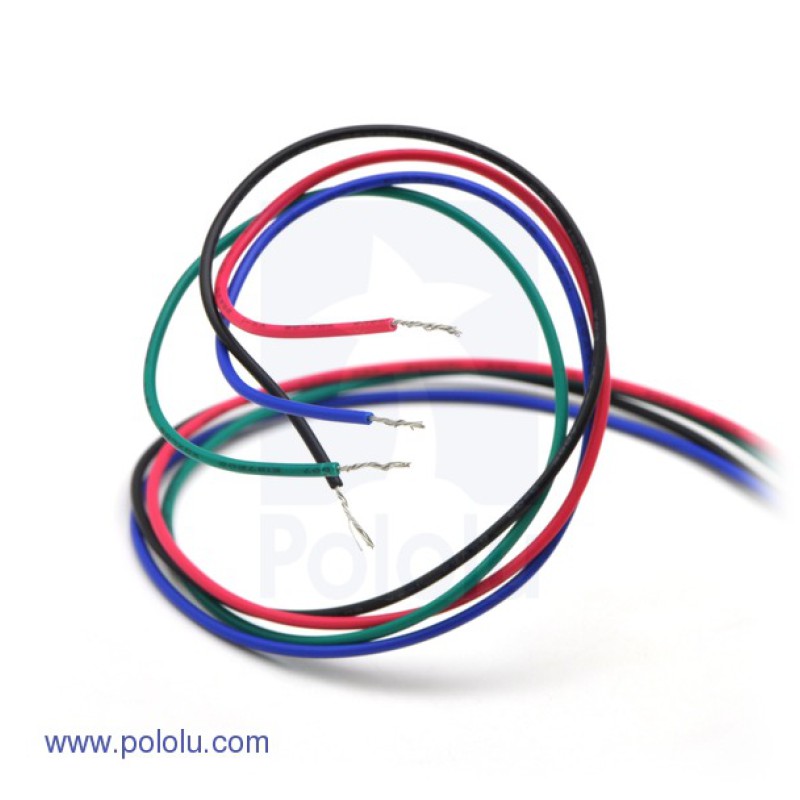

The motor has four color-coded wires terminated with bare leads.

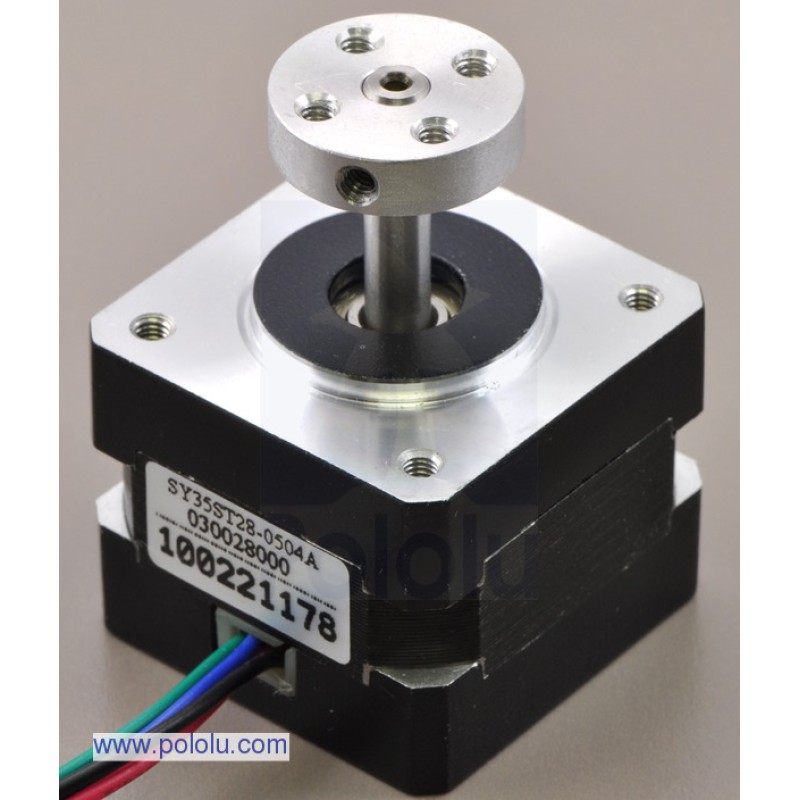

Our 5mm universal mounting
hub can be used to mount objects on the stepper motor’s 5mm-diameter output shaft.
נתונים

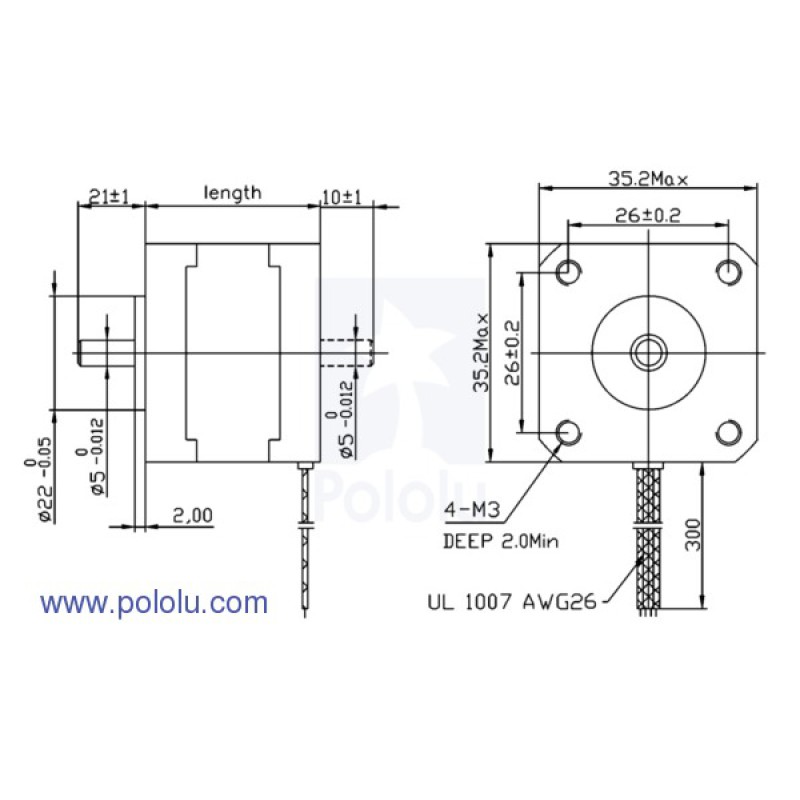

- Size: 35mmsquarex36mm, not including the shaft (NEMA 14)
- Weight: 180g (6oz)
- Shaft diameter: 5mm
- Steps per revolution: 200
- Current rating: 1000mA per coil
- Voltage rating: 2.7V
- Resistance: 2.7Ohm per coil

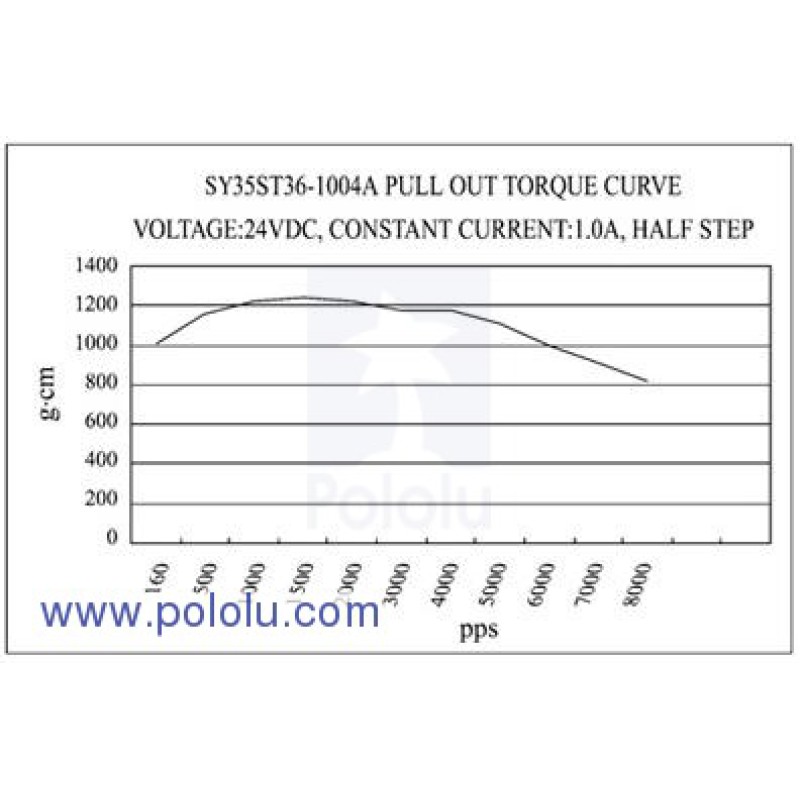

- Holding torque: 1400g-cm (20oz-in)
- Inductance: 4.3mH per coil
-
Lead length: 12in
Stepper Motor Applications
Stepper motors are generally used in a variety of applications where precise position control is
desirable and the cost or complexity of a feedback control system is unwarranted.
Here are a few applications where stepper motors are often found:
- Printers
- CNC machines
- 3D printer/prototyping machines
- Laser cutters
- Pick and place machines
- Linear actuators
- Hard drives
