Micro DC Geared Motor with Back Shaft
The 6V, 180rpm Micro DC Geared Motor with Back Shaft is ideal for
DIY enthusiasts and is designed to easily incorporate the
DFRobot Encoder. These motors are inexpensive, small, easy to install,
and ideally suited for use in a mobile robot car.
The DFRobot RoMeo microcontroller (sold separately)
is able to complete the closed-loop PID making use of the optional encoders.
We recommend this rubber wheel for this motor.
מאפיינים
- Gear Ratio 1:120
- No-load speed(3V):90RPM
- No-load speed(6V):180RPM
- No-load current(3V):60mA
- No-load current(6V):71mA
- Stall current(3V):260mA
- Stall current(6V):470mA
- Torgue (3V): 1.2Kgcm
- Torque (6V): 1.92Kgcm

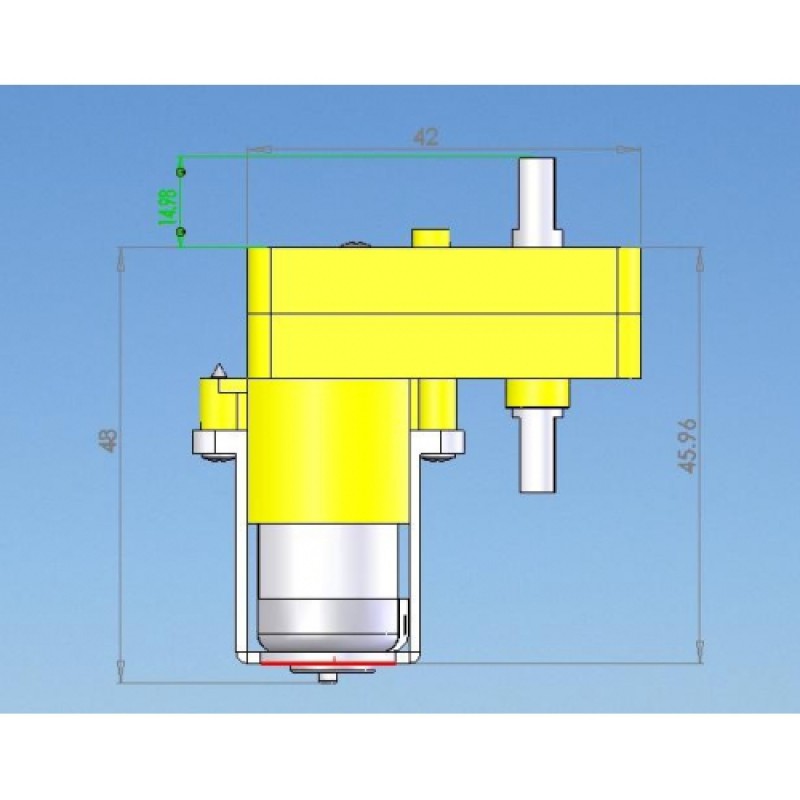

- Size: 55mm x 48.3mm x 23mm
- Weight:45g
