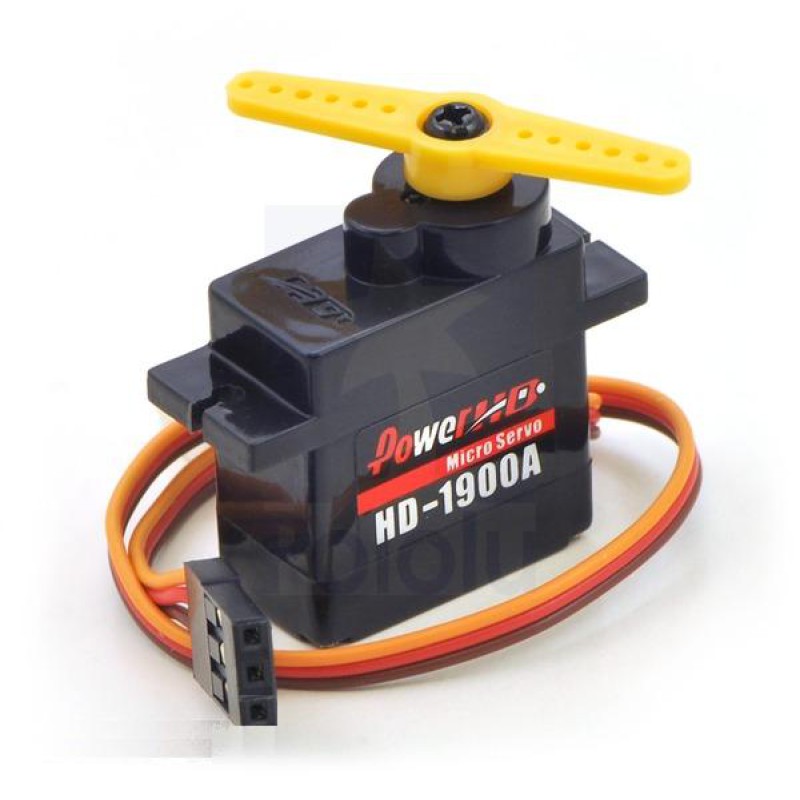

Power HD Micro Servo HD-1900A
The HD-1900A analog servo from Power HD is a great general-purpose micro servo at a great price.
Servo horns and associated hardware are included.
Key specs at 6V: 0.08sec/60°, 21oz-in (1.5kg-cm), 9.0g.
This is a great general-purpose actuator for tiny mechanisms.
The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible.

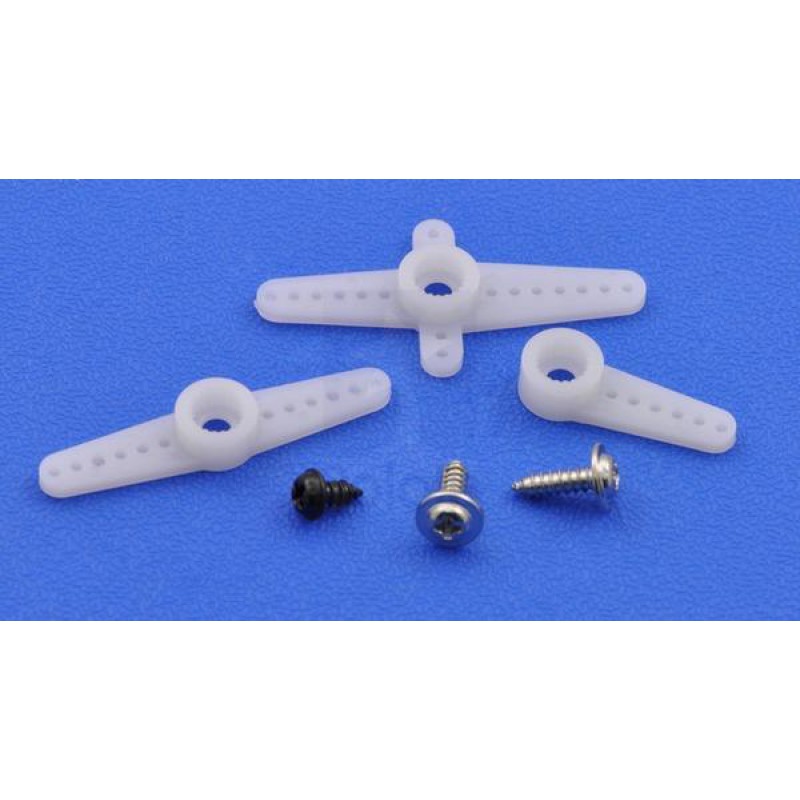

Mounting screws and an assortment of servo horns is included with this servo.
The pictures above show an example of this included hardware (hardware might vary).
You can find more information about this servo
under the specifications tab and in its datasheet (187k pdf).
Note that, as with most hobby servos,
stalling or back-driving this servo can strip its gears.
מידות
| Size: | 22.9 x 12.0 x 27.3 mm |
|---|---|
| Weight: | 9 g |
מאפיינים כלליים
| Digital?: | N |
|---|---|
| Free-run current @ 6V: | 140 mA |
| Stall current @ 6V: | 830 mA |
| Speed @ 6V: | 0.08 sec/60° |
| Stall torque @ 6V: | 1.5 kg·cm |
| Speed @ 4.8V: | 0.11 sec/60° |
| Stall torque @ 4.8V: | 1.2 kg·cm |
| Lead length: | 6 in |
| Hardware included?: | Y |
