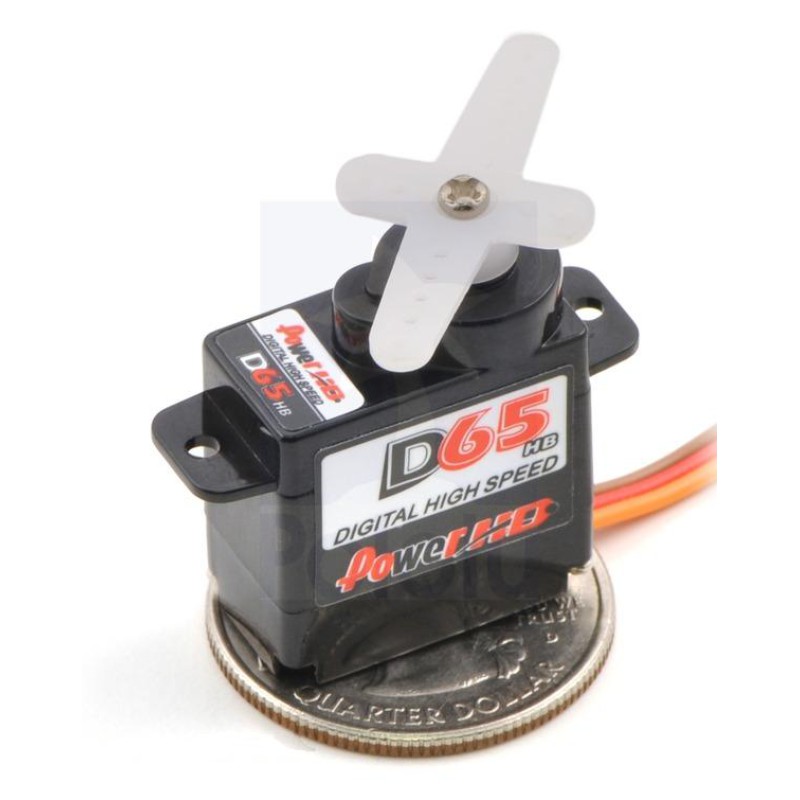

Power HD Micro Digital Servo DS65HB
The DS65HB digital servo from Power HD is a micro servo
with digital control electronics for increased performance.
It offers a good blend of speed and torque in a very small package.
Servo horns and associated hardware are included.
Key specs at 6V: 0.08sec/60°, 21oz-in (1.5kg-cm), 6.5g.
The HD-DS65HB is a great high-performance, fast actuator for small mechanisms.
It has digital electronics for improved performance.
The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible.

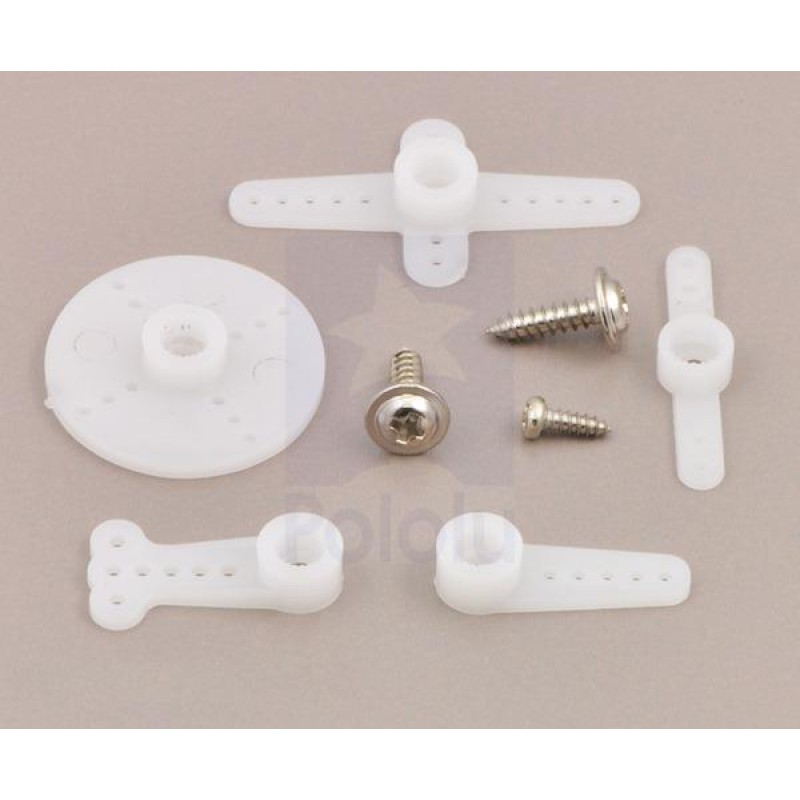

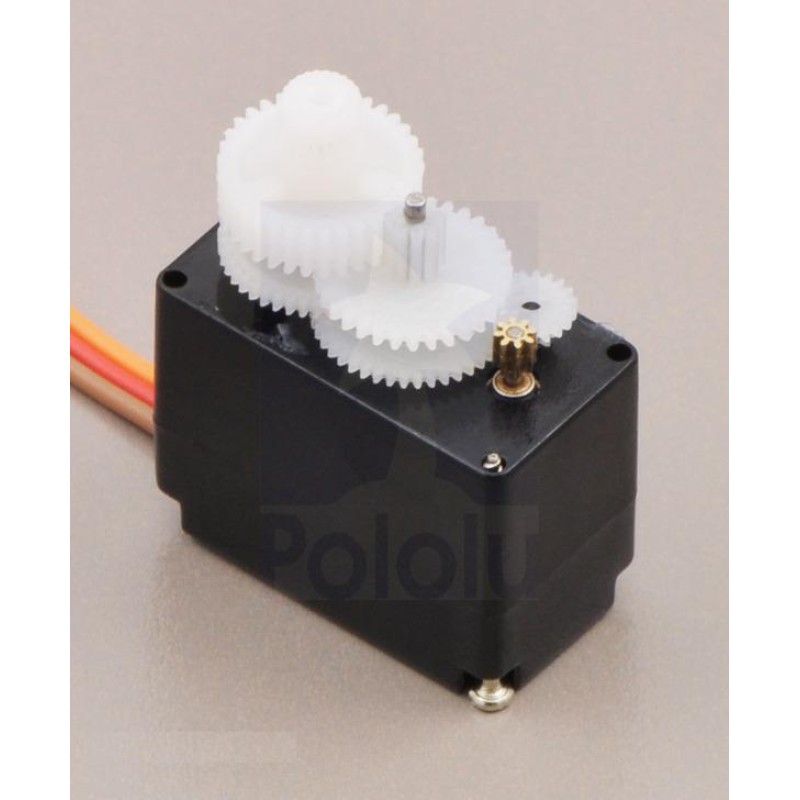

The pictures below show the servo’s
gear train and an example of the hardware that might be included with this servo (hardware might vary).
מידות
Size: | 20.8 x 11.0 x 20.0 mm |
---|---|
Weight: | 6.5 g |
מאפיינים כלליים
Digital?: | Y |
---|---|
Speed @ 6V: | 0.08 sec/60° |
Stall torque @ 6V: | 1.5 kg·cm |
Speed @ 4.8V: | 0.1 sec/60° |
Stall torque @ 4.8V: | 1.3 kg·cm |
Lead length: | 7 in |
Hardware included?: | Y |
