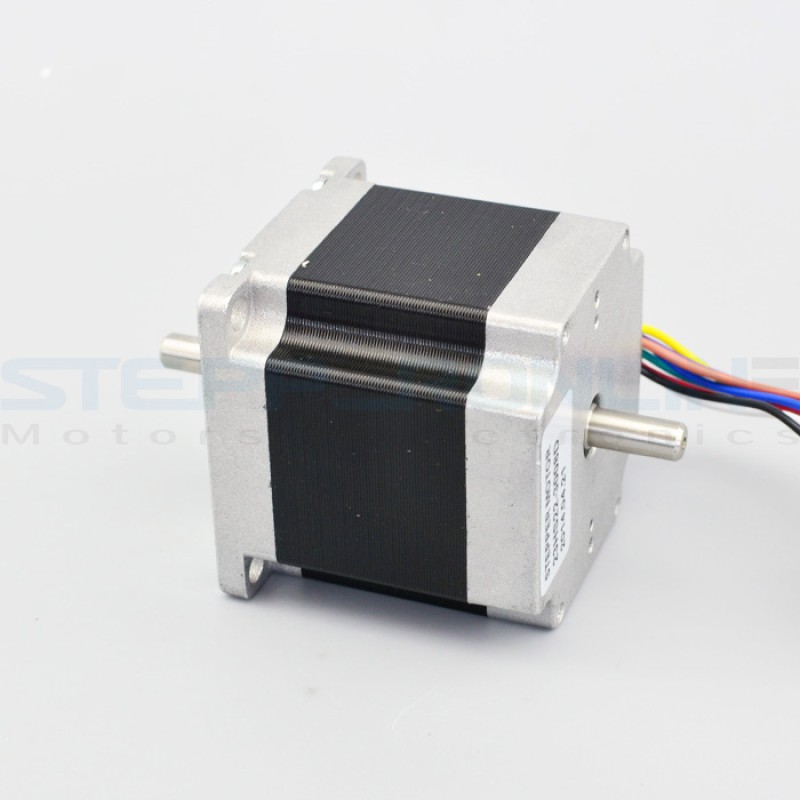

Dual Shaft Nema 23 CNC Stepper Motor 56mm 1.26Nm
Electrical Specification
Manufacturer Part Number | 23HS22-3008D |
Motor Type | Unipolar/Bipolar Stepper |
Step Angle | 1.8° |
Holding Torque(Unipolar) | 0.9Nm(127.5oz.in) |
Holding Torque(Bipolar Serial) | 1.26Nm(178.5oz.in) |
Holding Torque(Bipolar Parallel) | 1.26Nm(178.5oz.in) |
Rated Current/phase(Unipolar) | 3.0A |
Rated Current/phase(Bipolar Serial) | 2.12A |
Rated Current/phase(Bipolar Parallel) | 4.24A |
Phase Resistance(Unipolar) | 0.75 ohms |
Phase Resistance(Bipolar Serial) | 1.5 ohms |
Phase Resistance(Bipolar Parallel) | 0.375 ohms |
Recommended Voltage | 24-48V |
Physical Specification
Frame Size | 57 x 57mm |
Body Length | 56mm |
Shaft Diameter | Φ6.35mm |
Front Shaft Length | 21mm |
Rear Shaft Length | 15mm |
Number of Leads | 8 |
Lead Length | 500mm |
Weight | 0.7kg |
Resources
- Full datesheet about 23HS22-3008D: OSM Datasheet
Connection
Wire Color |
RED
|
YEL
|
BLK
|
BLU
|
WHT
|
PUR
|
GRN
|
BRN
|
Board Connector |
A
|
A-
|
C-
|
C
|
B
|
B-
|
D-
|
D
|
