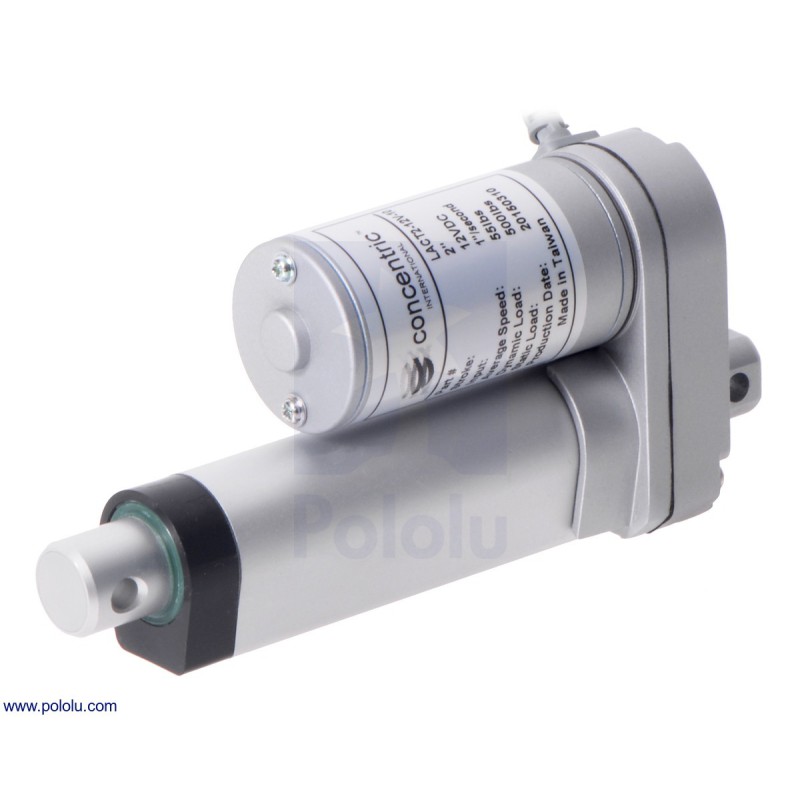

Glideforce LACT2-12V-05 Light-Duty Linear Actuator

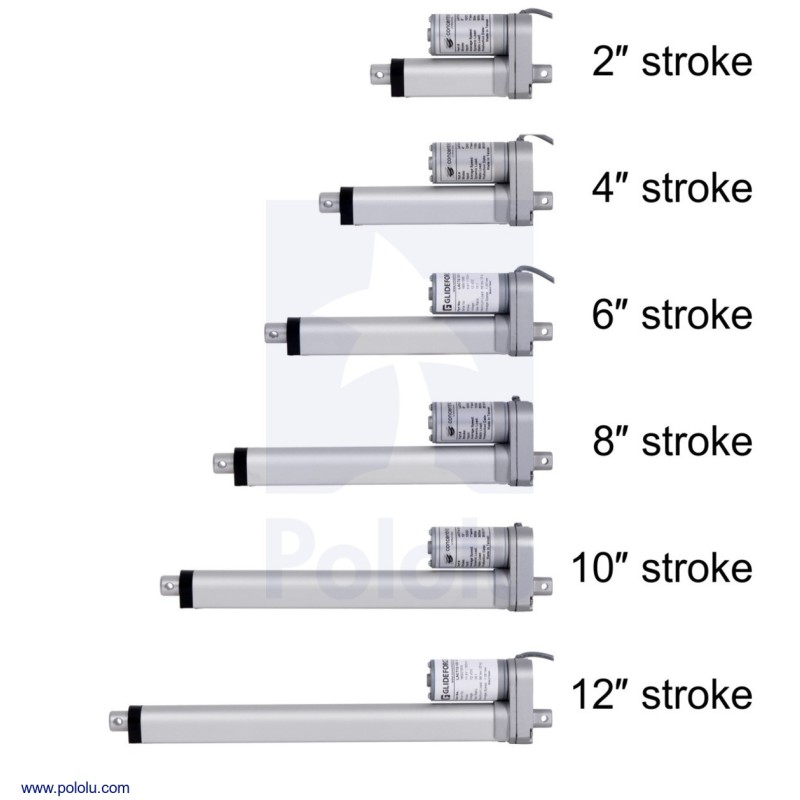

This 12V light-duty (LD) linear actuator with a 5:1 gear reduction can lift loads up to 15kgf [34lbs or 150N] and can withstand static loads up to 250kgf [550lbs or 2500N]. It has a maximum speed of 43.9mm/s [1.73″/s] at no load and 36.5mm/s [1.44″/s] at the maximum load. Limit switches at each end make the actuator easy to control over its full range of motion. The shaft holds its position when unpowered. This version has a 2-inch stroke (1.97″ usable) and no feedback potentiometer.

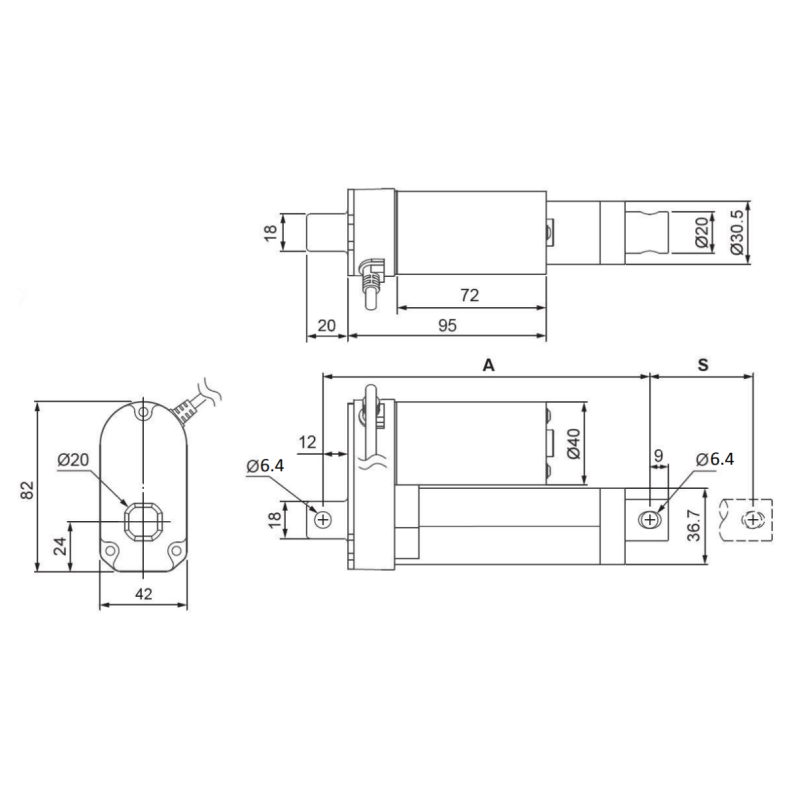

Dimensions
| Nominal stroke length: | 2 in |
|---|---|
| Actual stroke length: | 1.97 in |
| Retracted length: | 6.22 in |
| Extended length: | 8.19 in |
| Weight: | 0.86 kg |
General specifications
| Gear ratio: | 5:1 |
|---|---|
| Current @ 12V, no load: | 1.2 A |
| Current @ 12V, max load: | 3.2 A |
| Stall current @ 12V: | 7 A1 |
| Linear speed @ 12V, no load: | 1.7 in/s |
| Linear speed @ 12V, max load: | 1.4 in/s |
| Max linear force @ 12V: | 34 lb2 |
| Maximum duty cycle: | 25%3 |
| Feedback potentiometer included?: | N |
| Limit switches included?: | Y |
| Minimum operating temperature: | -25.0 °C |
| Maximum operating temperature: | 65 °C |
| IP rating: | IP654 |
