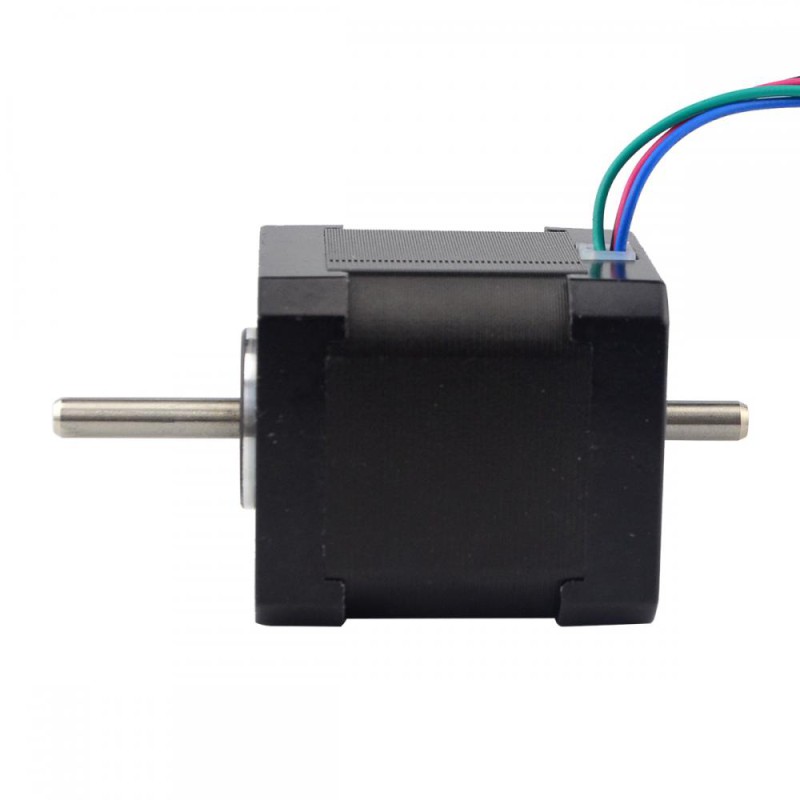

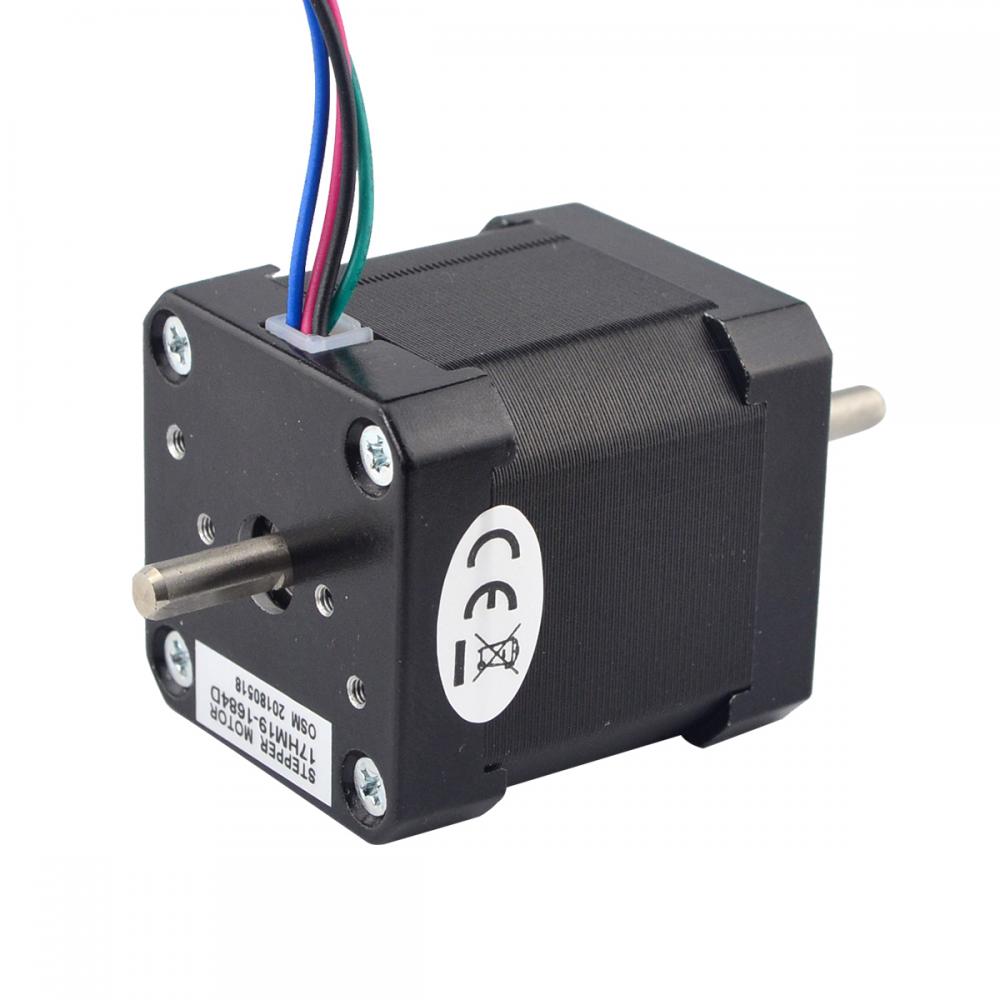

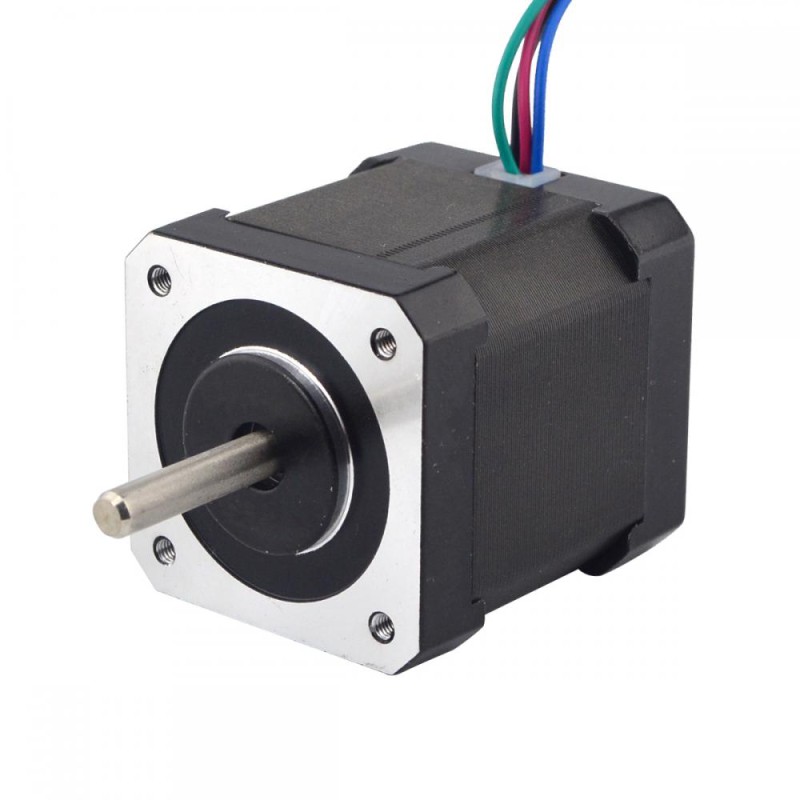

Dual Shaft Nema 17 Bipolar 0.9deg 44Ncm (62.48oz.in) 1.68A 2.8V 42x42x48mm 4 Wires
This model is dual shaft Nema 17 Bipolar stepper motor,it with step angle 0.9deg and size 42x42x48mm. It has 4 wires, each phase draws 1.68A at 2.8V, with holding torque 44Ncm (62.48oz.in).
-1000x1000.jpg)
Electrical Specification
- Manufacturer Part Number: 17HM19-1684D
- Motor Type: Bipolar Stepper
- Step Angle: 0.9 deg
- Holding Torque: 44Ncm(62.48oz.in)
- Rated Current/phase: 1.68A
- Voltage: 2.8V
- Phase Resistance: 1.65ohms
- Inductance: 4.10mH ± 20%(1KHz)
Physical Specification
- Frame Size: 42x 42mm
- Body Length: 48mm
- Shaft Diameter: Φ5mm
- Front Shaft Length: 24mm
- Rear Shaft Length:13mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 350g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 17HM19-1684D.pdf
