Voltage and Current Meter Display 100V 10A LED
Description
Handy LED display meter for measuring up to 100V and 10A DC. Wide supply voltage range of 4.5 - 30V DC.
Ideal for measuring power supplies and other electronic devices.
Specifications

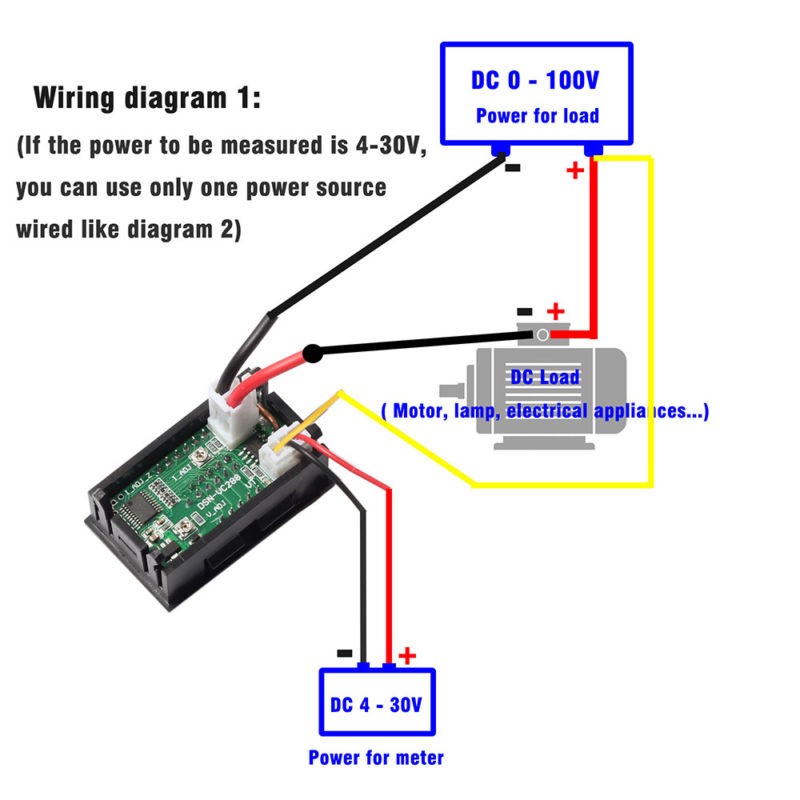

- Working voltage (Supply voltage, thin red + black wires) :4.5-30V DC
- Note: The maximum supply input voltage can not exceed 30V, otherwise the device will be damaged
- Working current:≤20mA
- Display: 0.28" Two color blue and red
- Measuring range: DC 0-100V 0-10A
- Minimum resolution (V): 0.1V
- Refresh rate: ≥100mS / times
- Measure accuracy: 1% (± 1 digit)
- Minimum resolution (A): 0.01A
- Operating temperature: -15 to 70° c
- size :48×29×22 mm/1.85*1.10*0.63"
- Net Weight:19 g
- Weight:29 g
