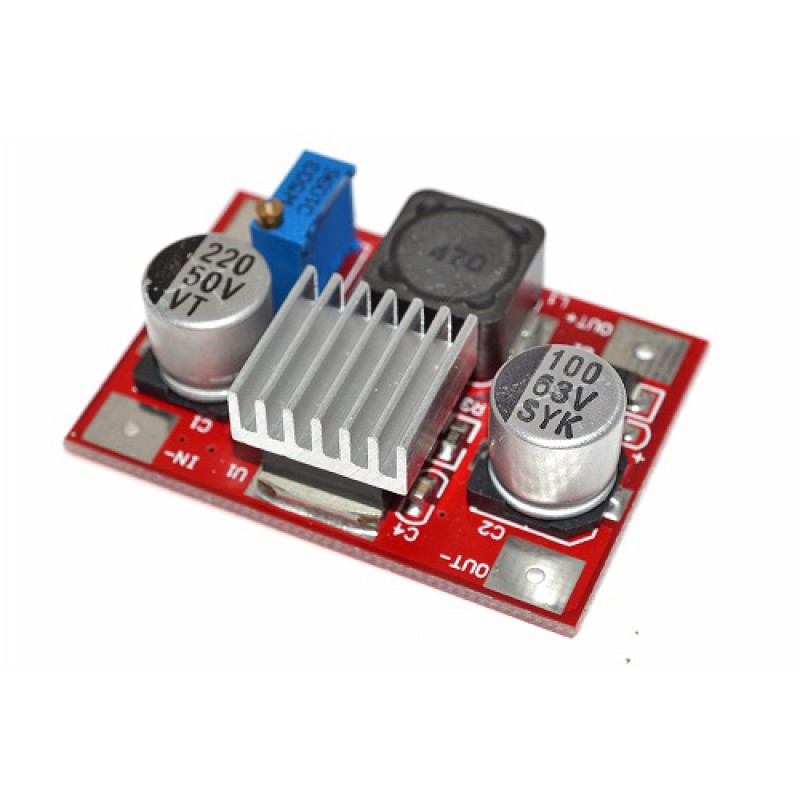

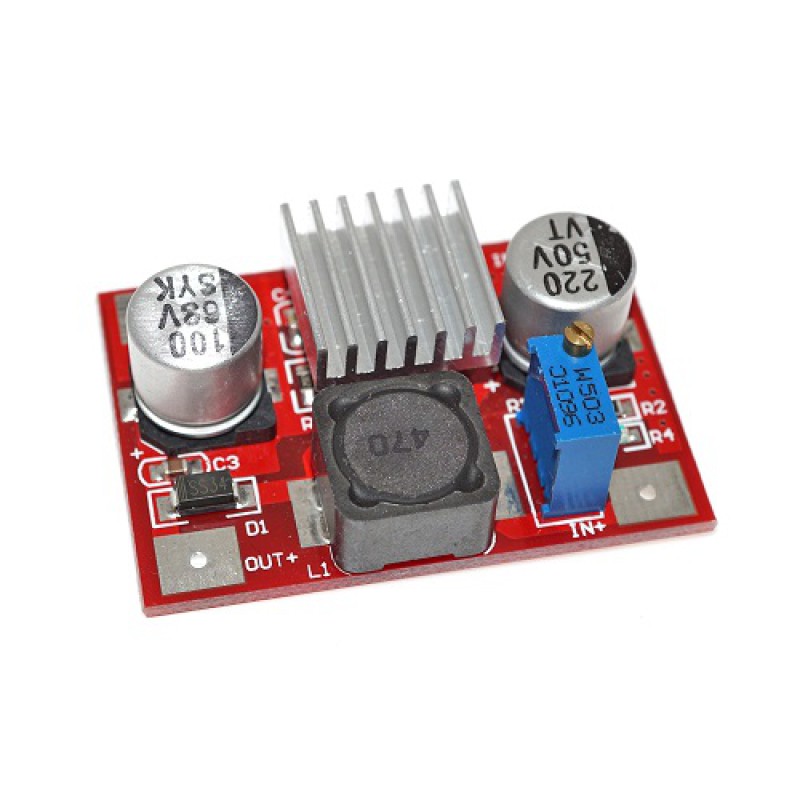

DC-DC Boost Converter Step Up Voltage Adjustable Module LM2577
When testing the output voltage if the output voltage is not higher than the input voltage, please adjust the potentiometer clockwise, the output voltage will increase.Remember not counterclockwise to adjust the use of antihypertensive modules you try to do, you must ensure that the output voltage is higher than the input voltage, so as not to damage the module!
Input + positive input
IN - negative
input Output + positive output
OUT - negative output
Input voltage range: 3.5V-35V (must ensure that the output voltage is greater than the input voltage)
Output voltage range : 4.0V-30V
Enter the maximum current: 3A (according to energy conservation to calculate the rated output current
Uin * Iin * Efficiency = Uout * Iout)
Input continuous operating current: 2A (the conditions of ventilation cooling good output voltage and input voltage ratio cannot be greater than 3)
Dimensions: length * width * height 4.3cm * 3.0cm * 1.2cm
