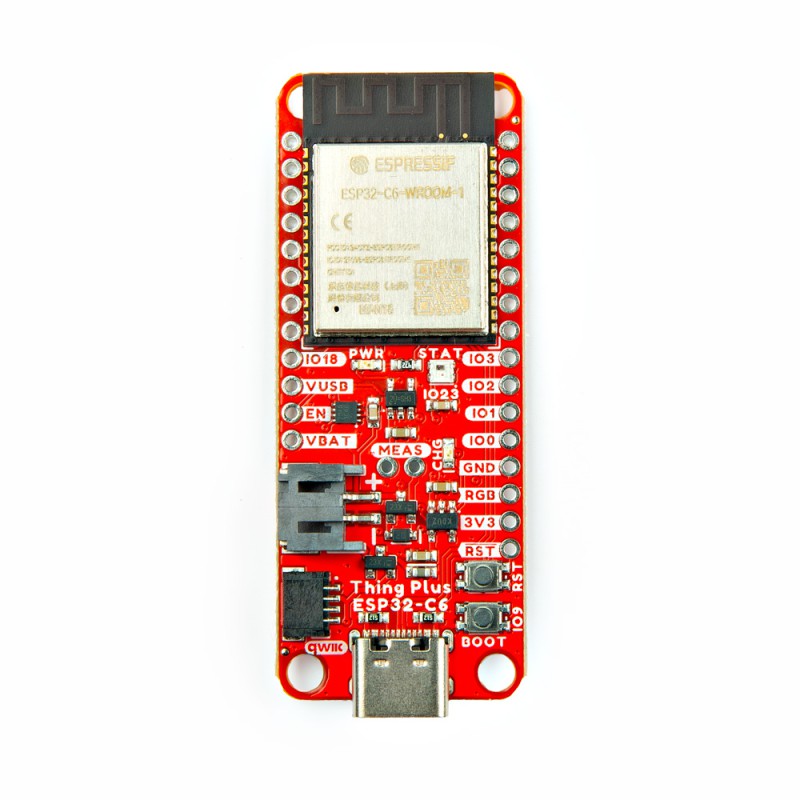

Packed with cutting-edge technology and housed in a compact, user-friendly footprint, the SparkFun ESP32-C6 Thing Plus empowers your wireless creations like never before. At its heart lies the powerful ESP32-C6 WROOM-1-N16 module from Espressif™, boasting a RISC-V single-core processor, more than enough flash memory, and a diverse selection of wireless connectivity options. Dive into the realms of 2.4 GHz WiFi 6, Bluetooth® 5.3, Zigbee and Thread (802.15.4), unlocking a world of possibilities for your projects.
The SparkFun ESP32-C6 Thing Plus is equipped with multiple features that accentuate the boards potential. The microSD card slot lets you expand your project's capabilities, while the Qwiic connector seamlessly integrates the Thing Plus into SparkFun's vast ecosystem of sensors, actuators, and more.
This development board also includes a LiPo battery charger and fuel gauge, an addressable LED, and more. The Thing Plus footprint is Feather-compatible and breaks out all of the ESP32-C6's 23 GPIO pins to 0.1in.-spaced PTH headers. For primary power and programming, the board is also equipped with a USB-C connector and a 2-pin JST connector for a LiPo battery.
The ESP32-C6 includes a wide range of peripheral options including SPI, UART, LPUART, I2C, I2S, LED PWM, USB Serial/JTAG controller, ADC and more. Many of these peripherals can be mapped to any GPIO pin though some are tied to specific pins.
Elevate your wireless projects with the SparkFun ESP32-C6 Thing Plus. Its intuitive design, powerful features, and seamless connectivity await.
ESP32-C6 WROOM-1-N16 Module:
32-bit RISC-V Single-Core Microprocessor
23 Multifunctional GPIO
Most peripherals available on any GPIO pin.
Up to 7 12-bit ADC Channels
Up to 2 UART Channels (with flow control)
USB Serial
One Low Power UART Channel
One I2C Channel
One Low Power I2C Channel
LED PWM
One I2S Channel
16 MB Flash
2.4 GHz WiFi 6
Bluetooth® 5 LE
Zigbee & Thread (802.15.4)
PCB Antenna
Matter-compatible
Thing Plus Form-Factor:
Dimensions: 2.55" x 0.9"
Two Mounting Holes
28 PTH pins
USB-C Connector
2-pin JST Connector for LiPo Battery (not included)
4-pin Qwiic Connector
µSD Card Slot
MCP73831 Battery Charger
Charge Rate: 213mA@3.3V
MAX17048 Fuel Gauge
I2C Address: 0x36
LEDs:
PWR - Red Power LED
CHG - Yellow Battery Charging Indicator
STAT - WS2812 RGB LED (Tied to IO23)
Buttons:
BOOT
RESET
