RFID Reader ID-12LA 125 kHz
RFID (radio-frequency identification) is the wireless non-contact use of radio-frequency electromagnetic fields,
for the purposes of identifying and tracking tags attached to objects.

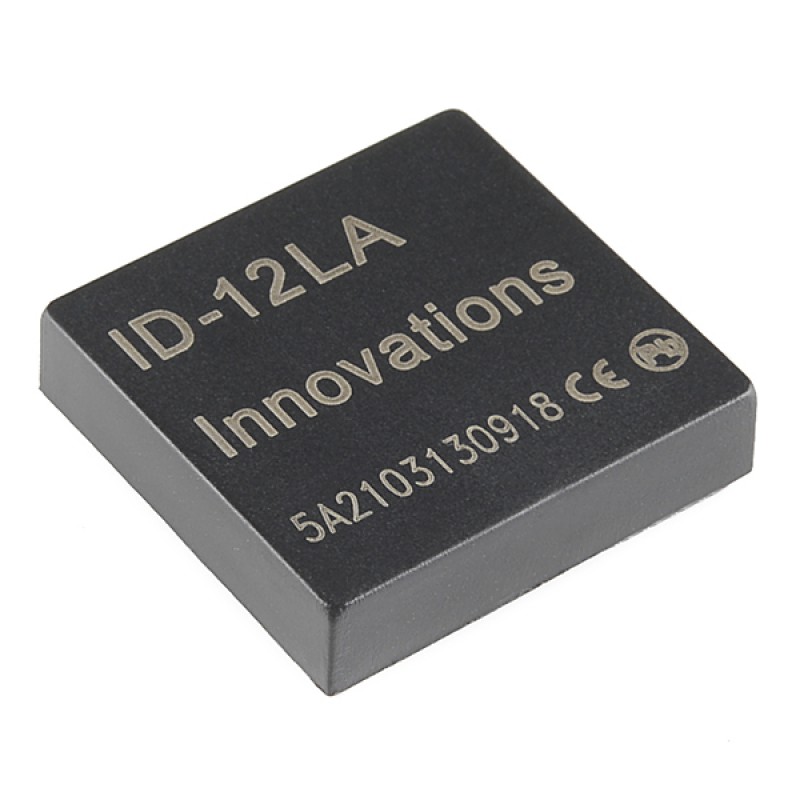

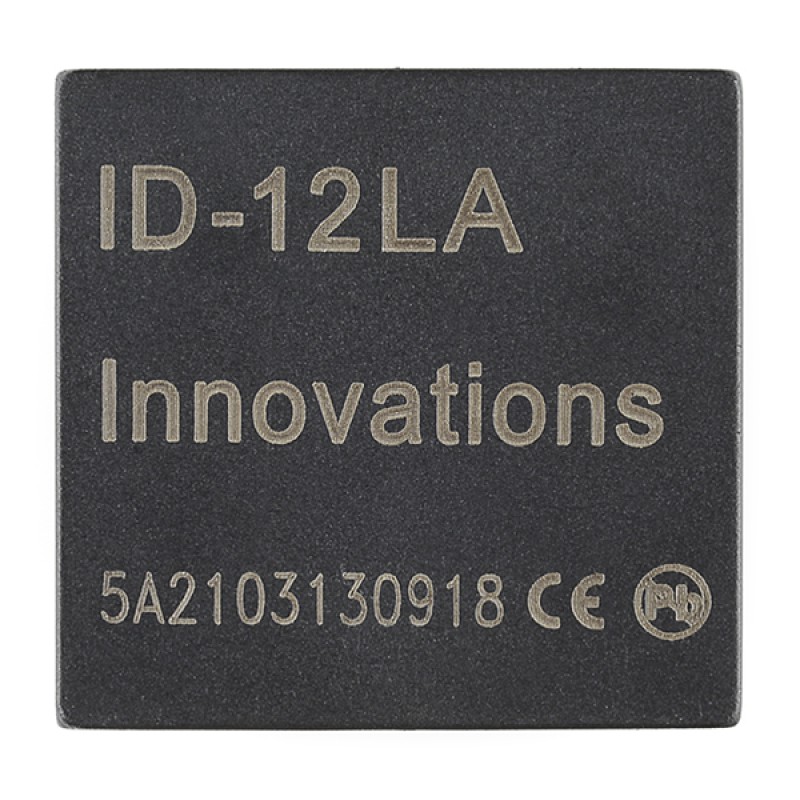

This is the ID-12LA, a very simple to use RFID reader module from ID Innovations.

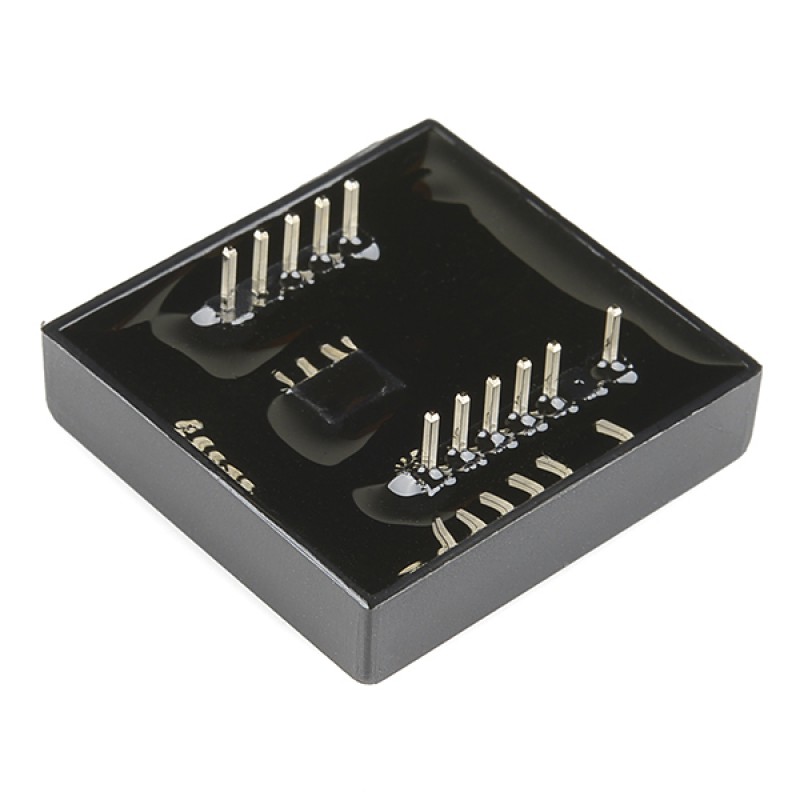

With a built in antenna, the only holdup is the 2mm pin spacing
(breakout board available below). Power the module,
hold up a 125khz card, and get a serial string output containing the unique ID of the card.
The new ID-12LA is essentially the same as the ID-12, but has a lower voltage input.
מאפיינים:
- 2.8 - 5V supply
- 125kHz read frequency
- EM4001 64-bit RFID tag compatible
- 9600bps TTL and RS232 output
- Magnetic stripe emulation output
- 120mm read range
מידות:

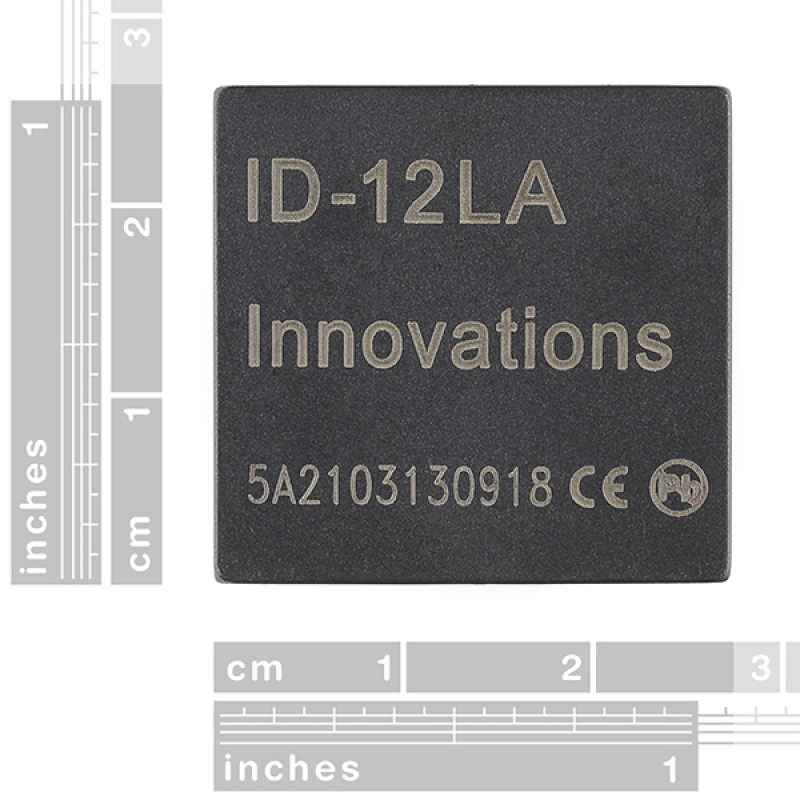

25x26mm
