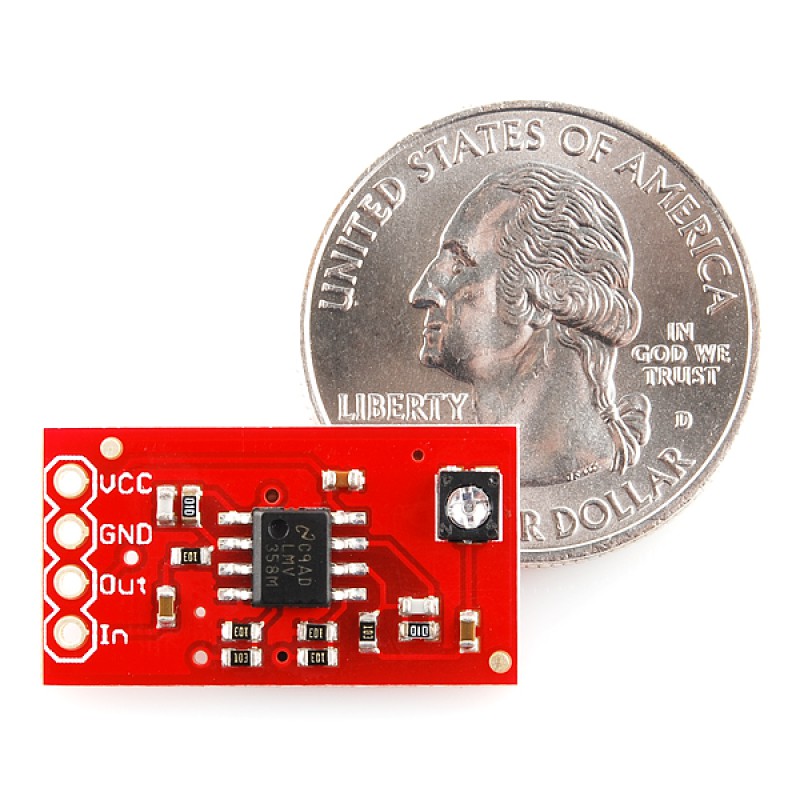

OpAmp Breakout
This is a simple Op Amp breakout board, set up as a 2-stage amplifier with a gain
of 100 (gain of 10 for each stage). The on-board trim pot sets the signal level between the stages,
not the feedback path. The bandwidth is set to 15.9kHz by a pair of feedback capacitors,
or over 100kHz with the caps removed.
The LMV358 opamp can source up to 160mA and works well as a low impedance driver/buffer.
