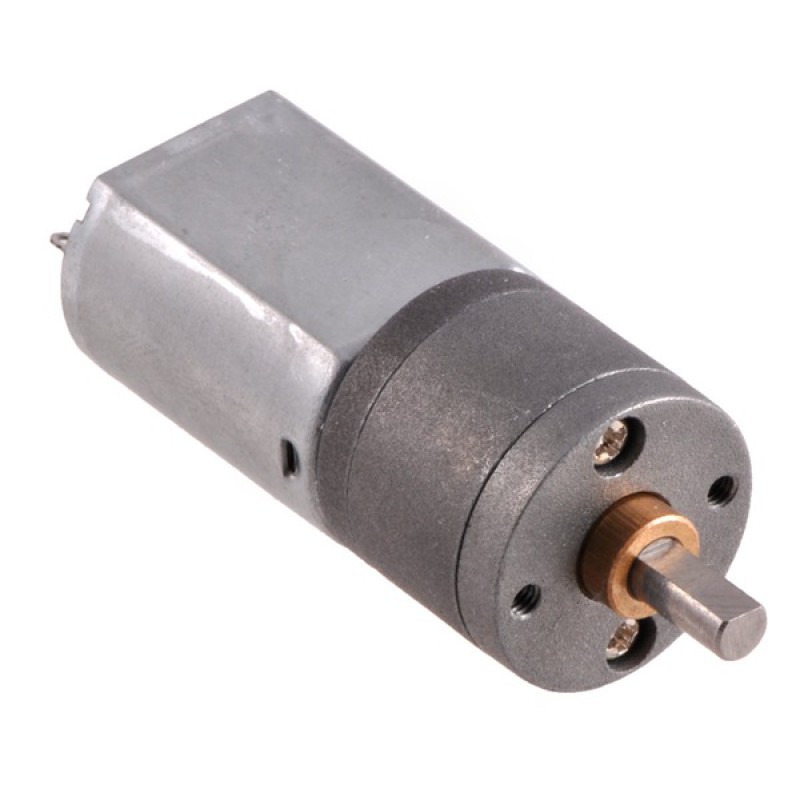

154:1 Metal Gearmotor 20Dx44L mm
This 1.72" x 0.79" x 0.79" gearmotor is a brushed DC motor
with 154:1 metal gearbox that has the power to deliver both speed and torque.
These units have a 0.276"-long, 4mm-diameter D-shaped output shaft.
Key specs at 6V: 90RPM and 250mA free-run, 120oz-in (8.6kg-cm) and 3.3A stall.
The face plate has six mounting holes evenly spaced around the outer edge threaded for M3 screws.
These mounting holes form a regular hexagon and the centers of neighboring holes are 15.5mm apart.
You can use our custom 37D metal gearmotor bracket
(shown in the left picture below) to mount the gearmotor to your project via these mounting holes and the screws that come with the bracket.
Please note that unlike our smaller metal gearmotors, these 37D mm gearmotors have output shafts with a diameter of 6mm.

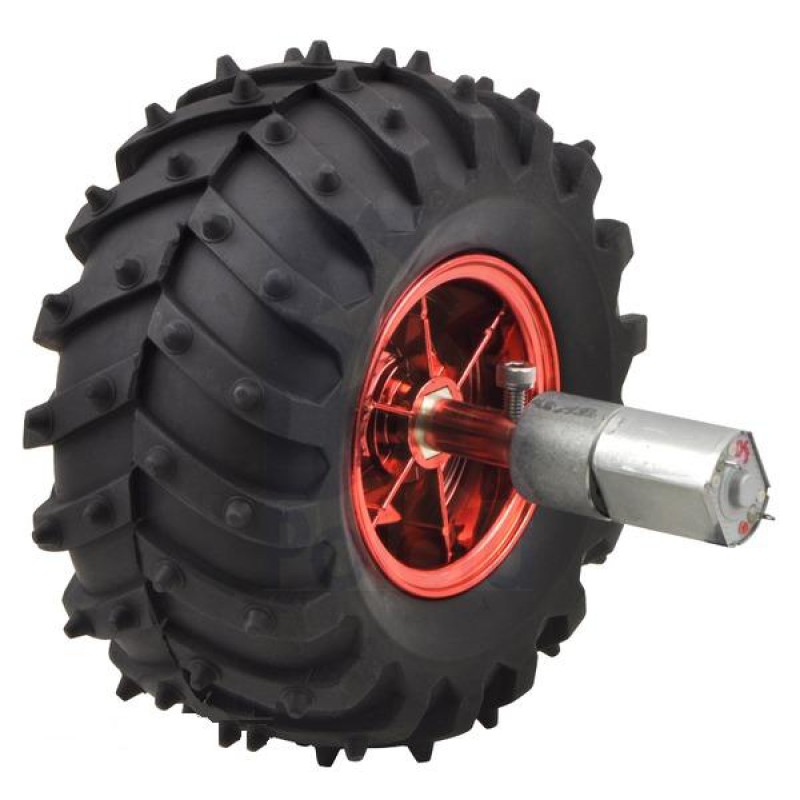

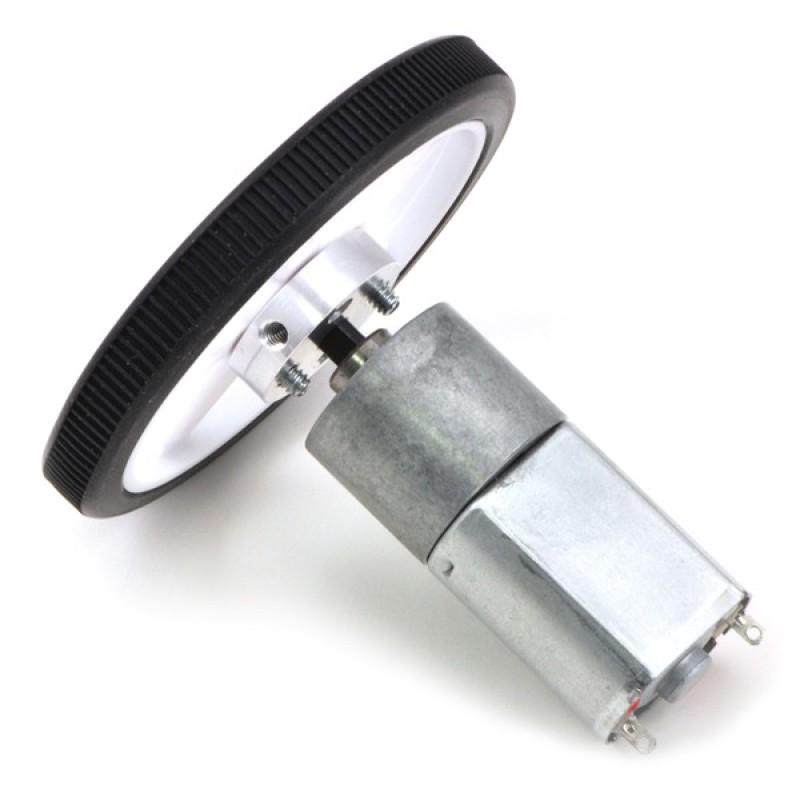

The Pololu universal aluminum mounting hub for 6mm shafts can be used to mount our larger Pololu wheels
(80mm- and 90mm-diameter) or custom wheels and mechanisms to the gearmotor’s output shaft (see the right picture above).
The picture below shows the dimensions (in mm) of the 37D mm line of gearmotors.
The value of X
is 22mm for the 19:1 37Dx52L mm and 29:1 37Dx52L mm versions,
24mm for the 50:1 37Dx54L mm and 67:1 37Dx54L mm versions, and 26.5mm for the
100:1 37Dx57L mm and 131:1 37Dx57L mm versions.
מידות
Size: | 20D x 47L mm |
---|---|
Weight: | 1.55 oz |
Shaft diameter: | 4 mm |
מאפיינים כלליים
Gear ratio: | 154:1 |
---|---|
Free-run speed @ 6V: | 90 rpm |
Free-run current @ 6V: | 250 mA |
Stall current @ 6V: | 3300 mA |
Stall torque @ 6V: | 120 oz·in |
